BestB8 8100

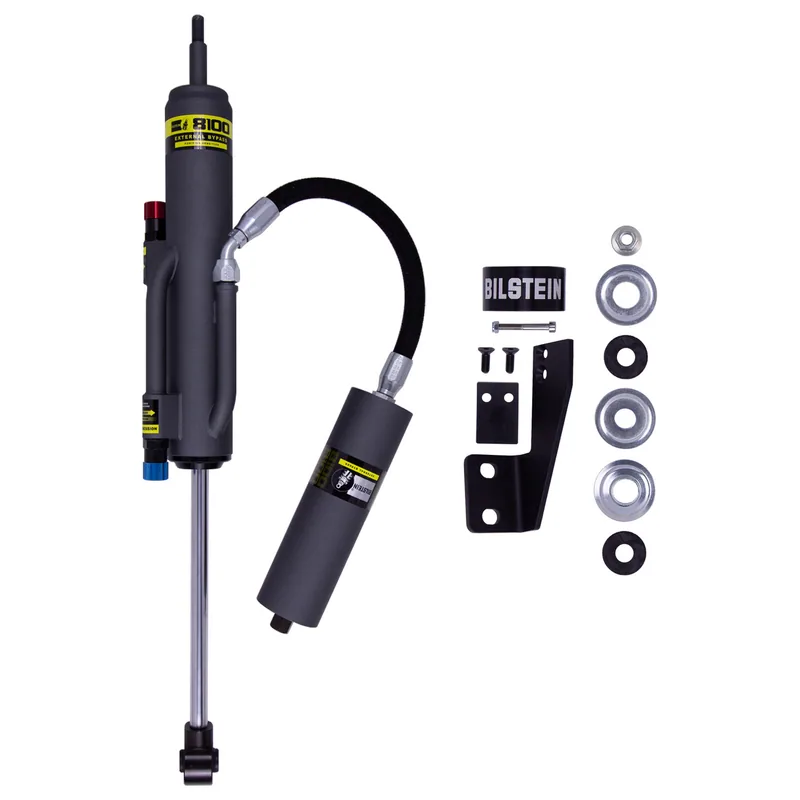

Bilstein 25-326048 B8 8100 Bypass Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 25-325805 B8 8100 Shock Absorber (Rear right)
- 25-326055 B8 8100 Bypass Shock Absorber (Rear right)
- 25-328929 B8 8100 DSA Shock Absorber (Rear right)
- Replaces Bilstein
- 25-284539
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 72 × 20 × 14 cm, 9.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
71 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tundra | 2021 | 1794 Edition, Limited, Nightshade, Platinum, SR, SR5, TRD Pro, Trail | Rear left | All |
|
| Toyota Tundra | 2019–2020 | 1794 Edition, Limited, Platinum, SR, SR5, TRD Pro | Rear left | All |
|
| Toyota Tundra | 2018 | 1794 Edition, Limited, Platinum, SR, SR5 | Rear left | All |
|
| Toyota Tundra | 2015–2017 | 1794 Edition, Limited, Platinum, SR, SR5, TRD Pro | Rear left | All |
|
| Toyota Tundra | 2014 | 1794 Edition, Limited, Platinum, SR, SR5 | Rear left | All |
|
| Toyota Tundra | 2012–2013 | Base, Limited, Platinum | Rear left | All |
|
| Toyota Tundra | 2010–2011 | Base, Limited, Platinum, SR5 | Rear left | All |
|
| Toyota Tundra | 2007–2009 | Base, Limited, SR5 | Rear left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 25.88
- Collapsed Length (in)
- 15.75
- Extended Length (mm)
- 657.4
- Collapsed Length (mm)
- 400.0
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 12.4mm
- Body Design
- Bypass Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- EVO Grey
- Reservoir
- Yes
- Adjustable Damping
- Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
