BestB8 8100

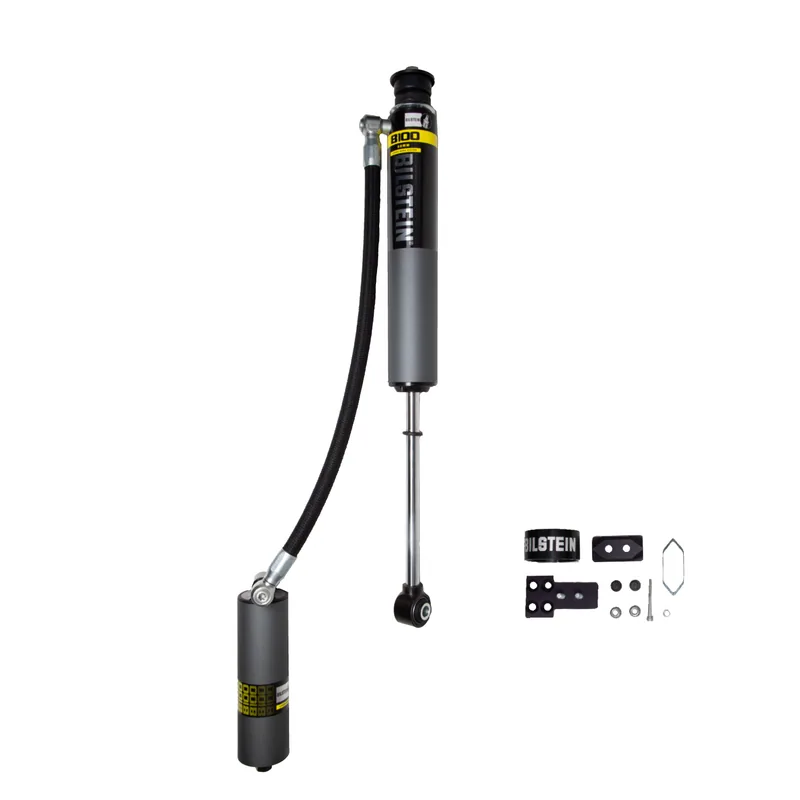

Bilstein 25-324075 B8 8100 Shock Absorber

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

25-281873 B8 8100 Shock Absorber (Rear right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 72 × 20 × 14 cm, 9.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

50 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 1500	Years	2026	Submodels	Big Horn, Express, Laramie, Lone Star, Rebel, Tradesman, Warlock	Position	Rear left	Drive / body / engine	All	Notes	Fits Trucks with 0-1" Rear Lift Without Air Suspension Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2025	Submodels	Big Horn, Lone Star, Rebel, Tradesman, Warlock	Position	Rear left	Drive / body / engine	All	Notes	Fits Trucks with 0-1" Rear Lift Without Air Suspension Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2024	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear left	Drive / body / engine	All	Notes	Fits Trucks with 0-1" Rear Lift Without Air Suspension Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2022–2023	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift Without Air Suspension Fits Vehicles With 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift Without Air Suspension Fits Vehicles With 0-1" Rear Lift Without Air Suspension Check which applies
Ram 1500	Years	2019–2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift Without Air Suspension Fits Vehicles With 0-1" Rear Lift Without Air Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 25.76
Collapsed Length (in): 15.69
Extended Length (mm): 654.3
Collapsed Length (mm): 398.5
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.1mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: EVO Grey
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
