BestB8 8100

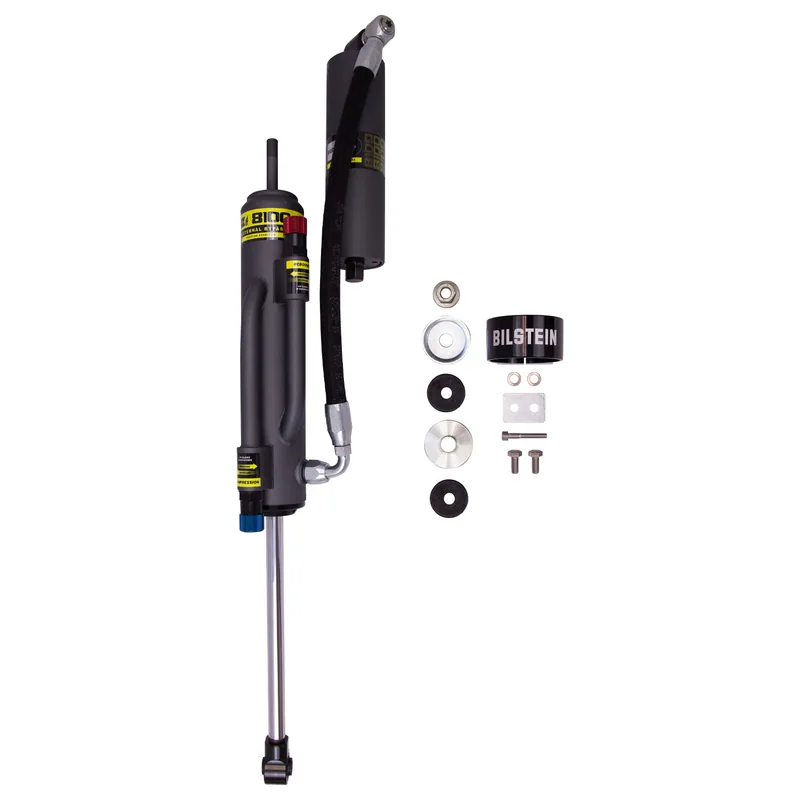

Bilstein 25-320442 B8 8100 Bypass Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 25-320459 B8 8100 Bypass Shock Absorber (Rear right)
- Replaces Bilstein
- 25-269802
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 67 × 20 × 14 cm, 9.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
74 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2023 | Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail Special Edition | Rear left | All |
|
| Toyota Tacoma | 2022 | Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport | Rear left | All |
|
| Toyota Tacoma | 2021 | Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail | Rear left | All |
|
| Toyota Tacoma | 2017–2020 | Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport | Rear left | All |
|
| Toyota Tacoma | 2016 | Limited, SR, SR5, TRD Off-Road, TRD Sport | Rear left | All |
|
| Toyota Tacoma | 2015 | Pre Runner, TRD Pro | Rear left | All |
|
| Toyota Tacoma | 2005–2015 | Base | Rear left | 4WD |
|
| Toyota Tacoma | 2005–2014 | Pre Runner | Rear left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.94
- Collapsed Length (in)
- 14.25
- Extended Length (mm)
- 608.0
- Collapsed Length (mm)
- 362.0
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 12mm
- Body Design
- Bypass Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- EVO Grey
- Reservoir
- Yes
- Adjustable Damping
- Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
