BetterB8 5160

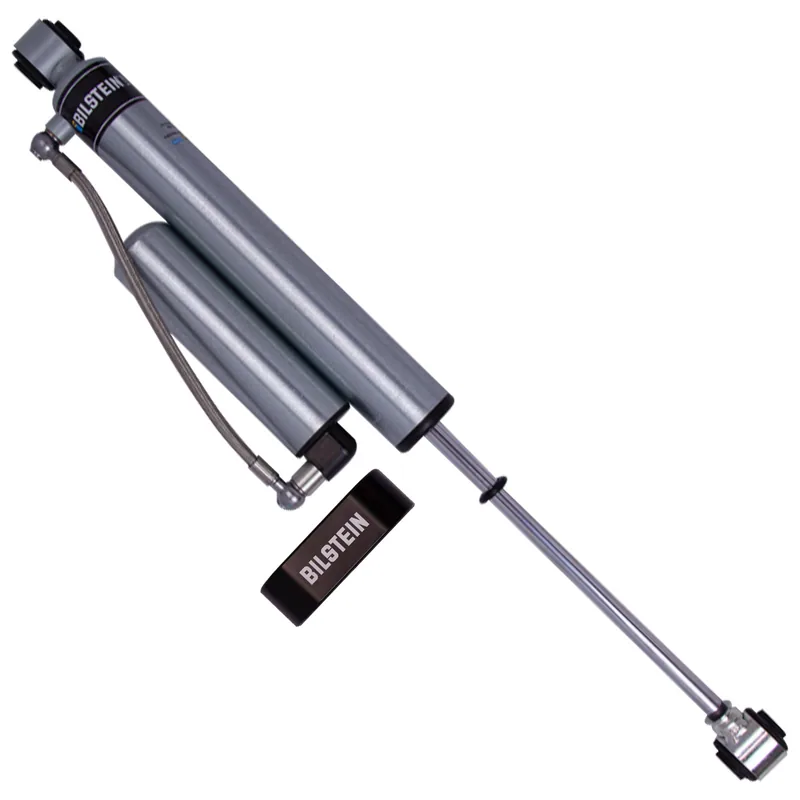

Bilstein 25-316957 B8 5160 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 25-293487
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 73 × 17 × 11 cm, 3.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
90 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Silverado 1500 | 2021–2026 | Custom, High Country, LT, LTZ, RST, WT | Rear | All |
|
| Chevrolet Silverado 1500 | 2019–2020 | Custom, High Country, LT, LTZ, RST, WT | Rear | All |
|
| Chevrolet Silverado 1500 LTD | 2022 | Custom, High Country, LT, LTZ, RST, WT | Rear | All |
|
| GMC Sierra 1500 | 2022–2026 | Elevation, Pro, SLE, SLT | Rear | All |
|
| GMC Sierra 1500 | 2019–2021 | Base, Elevation, SLE, SLT | Rear | All |
|
| GMC Sierra 1500 Limited | 2022 | Elevation, Pro, SLE, SLT | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.01
- Collapsed Length (in)
- 15.51
- Extended Length (mm)
- 660.7
- Collapsed Length (mm)
- 394.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 14.1mm
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 10.50
- Billet Reservoir Clamp Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
