BetterB8 5160

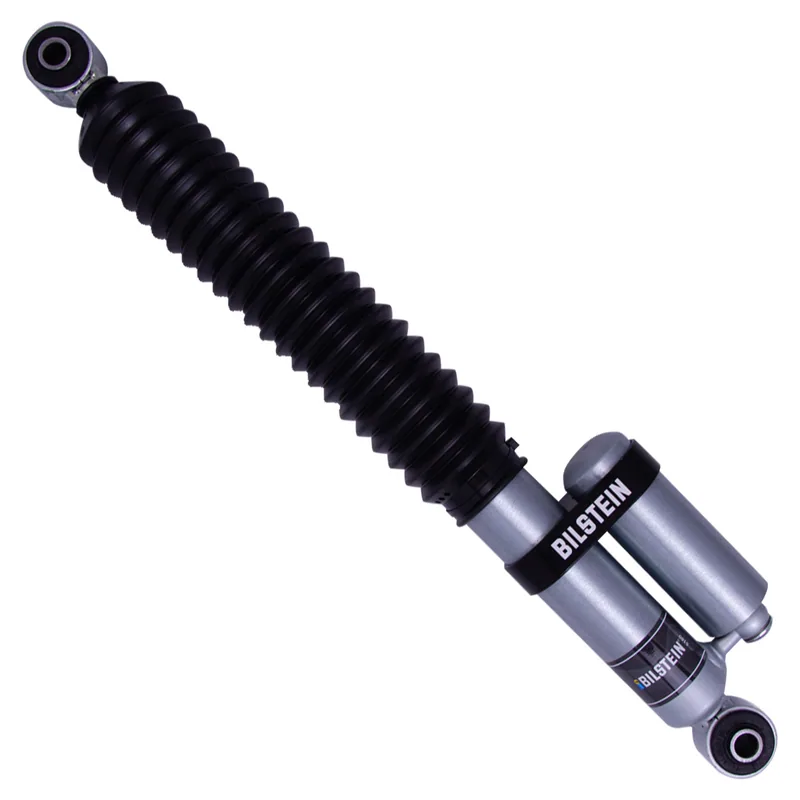

Bilstein 25-316926 B8 5160 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 25-256284
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 66 × 17 × 11 cm, 3.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
69 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Colorado | 2021–2022 | LT, WT, Z71 | Rear | All |
|
| Chevrolet Colorado | 2015–2020 | Base, LT, WT, Z71 | Rear | All |
|
| GMC Canyon | 2021–2022 | AT4, Denali, Elevation, Elevation Standard | Rear | All |
|
| GMC Canyon | 2018–2020 | All Terrain, Base, Denali, SL, SLE, SLT | Rear | All |
|
| GMC Canyon | 2017 | Base, Denali, SL, SLE, SLT | Rear | All |
|
| GMC Canyon | 2015–2016 | Base, SL, SLE, SLT | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.58
- Collapsed Length (in)
- 14.80
- Extended Length (mm)
- 599.0
- Collapsed Length (mm)
- 376.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 14.4mm
- Lower Mount Type
- Eye 14.4mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 8.78
- Billet Reservoir Clamp Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
