BetterB8 5160

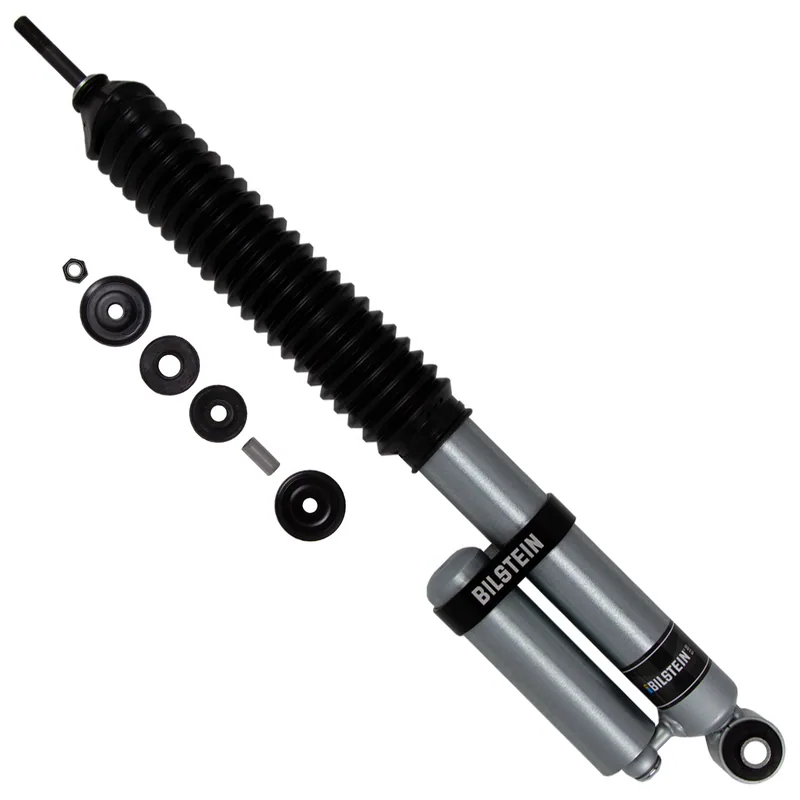

Bilstein 25-311914 B8 5160 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 25-240436
Country of origin: United States
Box: Ships in Bilstein's own box (about 70 × 17 × 11 cm, 4 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

90 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 2500	Years	2026	Submodels	Big Horn, Black Express, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman, Warlock	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2024–2025	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2023	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2022	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2019–2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2017–2018	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, SLT, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2016	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Outdoorsman, SLT, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2014–2015	Submodels	Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, Outdoorsman, SLT, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 25.08
Collapsed Length (in): 16.42
Extended Length (mm): 637.0
Collapsed Length (mm): 417.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.4mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 8.54
Replacement Mounting Kit: B4-KT1-Z223A01
Billet Reservoir Clamp Included: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
