BetterB8 5160

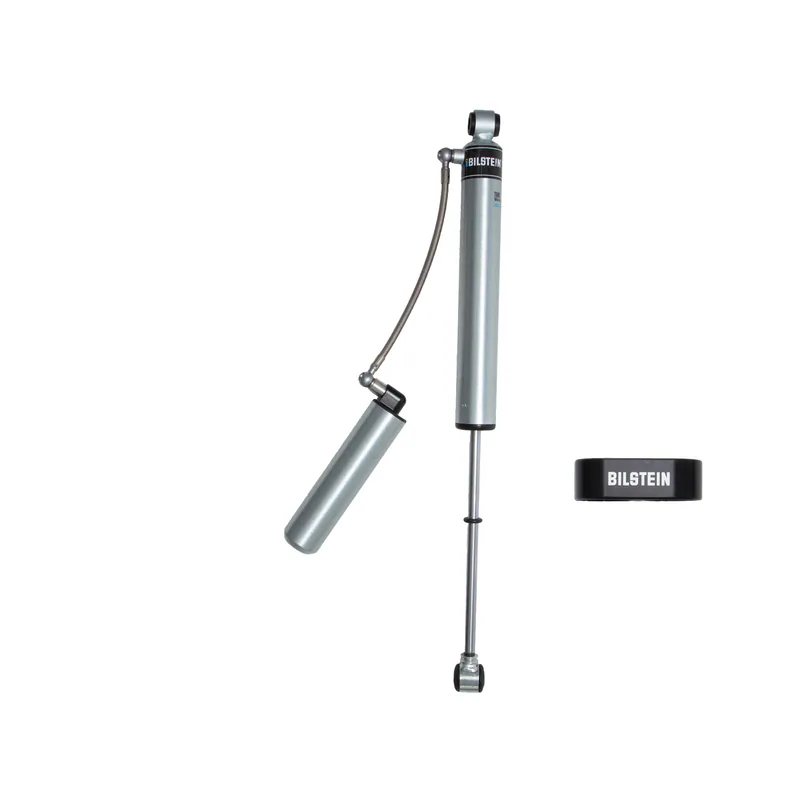

Bilstein 25-311877 B8 5160 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 25-188363
Country of origin: United States
Box: Ships in Bilstein's own box (about 75 × 17 × 11 cm, 3.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

41 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford F-250 Super Duty	Years	2004	Submodels	Harley-Davidson Edition	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 4-6" Front Lift
Ford F-250 Super Duty	Years	2004	Submodels	King Ranch, Lariat, XL, XLT	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-250 Super Duty	Years	1999–2003	Submodels	Lariat, XL, XLT	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	2004	Submodels	Harley-Davidson Edition	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	2004	Submodels	King Ranch	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	2004	Submodels	Lariat, XL, XLT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	2001–2004	Submodels	XL, XLT	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	1999–2004	Submodels	Lariat, XL, XLT	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	2003	Submodels	King Ranch, Lariat, XL, XLT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	1999–2002	Submodels	Lariat, XL, XLT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift
Ford F-350 Super Duty	Years	1999–2000	Submodels	Lariat, XL, XLT	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Spring type: Front: Leaf , Rear: Leaf Fits Vehicles With 4-6" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 27.13
Collapsed Length (in): 15.96
Extended Length (mm): 689.2
Collapsed Length (mm): 405.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Eye 16mm
Lower Mount Type: Eye 12mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: No
Stroke/travel Length (in): 11.06
Billet Reservoir Clamp Included: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
