BetterB8 5160

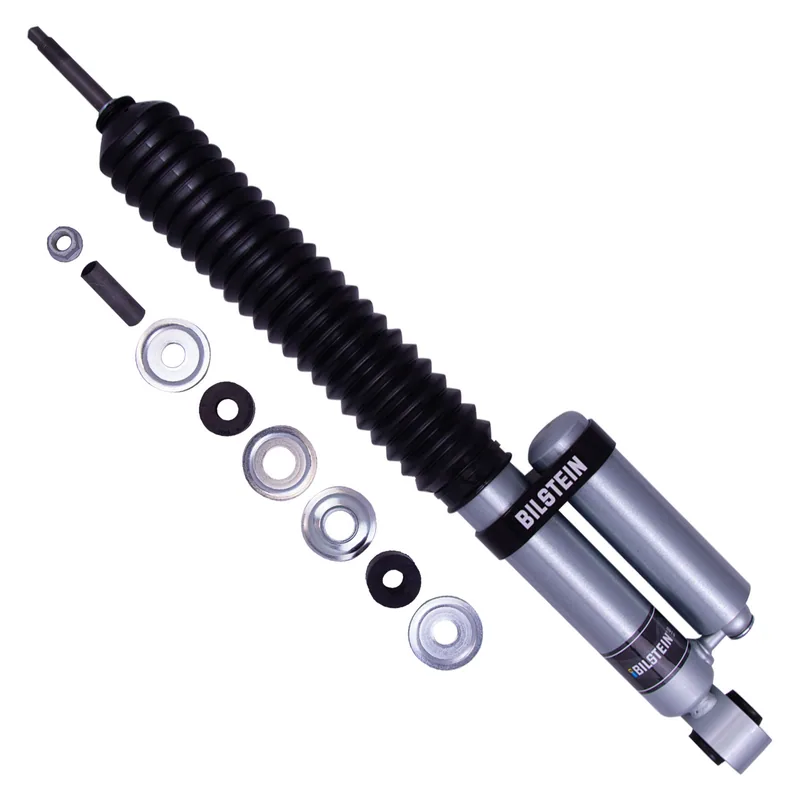

Bilstein 25-311419 B8 5160 Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 25-311402 B8 5160 Shock Absorber (Rear left)
- Replaces Bilstein
- 25-285529
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 68 × 17 × 11 cm, 4.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
15 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Land Cruiser | 2020–2021 | Base, Heritage Edition | Rear right | All |
|
| Toyota Land Cruiser | 2013–2019 | Base | Rear right | All |
|
| Toyota Land Cruiser | 2008–2011 | Base | Rear right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.17
- Collapsed Length (in)
- 14.61
- Extended Length (mm)
- 614.0
- Collapsed Length (mm)
- 371.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 19.25mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.56
- Billet Reservoir Clamp Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
