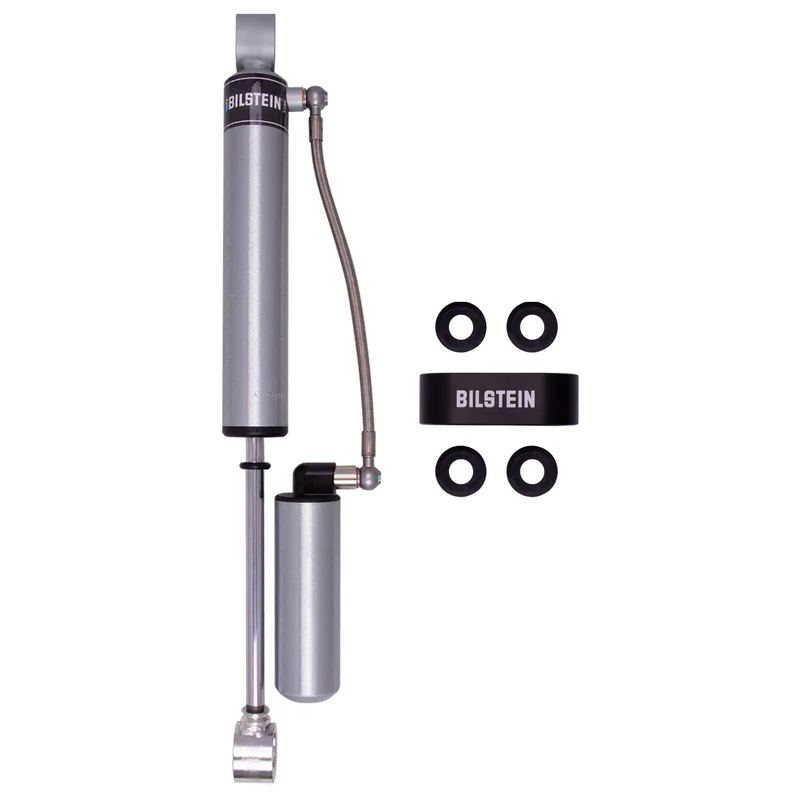

Bilstein 25-311334 B8 5160 Shock Absorber
BetterB8 5160

Bilstein 25-311334 B8 5160 Shock Absorber

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Replaces Bilstein
25-267570
Country of origin
United States
Box
Ships in Bilstein's own box (about 62 × 17 × 11 cm, 3.4 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

24 vehicles, newest years first

Toyota Tacoma2001–2004Pre RunnerRear rightAll
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma2001–2004BaseRear right4WD · L4 2.7L
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma2001–2004BaseRear right4WD · V6 3.4L
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma1998–2000Limited, Pre RunnerRear rightAll
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma1998–2000Base, SR5Rear right4WD · L4 2.7L
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma1998–2000Base, SR5Rear right4WD · V6 3.4L
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma1996–1997SR5Rear rightAll
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma1996–1997BaseRear right4WD · L4 2.7L
  • Fits Vehicles With 0-1.5" Rear Lift
Toyota Tacoma1996–1997BaseRear right4WD · V6 3.4L
  • Fits Vehicles With 0-1.5" Rear Lift

Specifications

As Bilstein publishes them.

Extended Length (in)
21.78
Collapsed Length (in)
13.43
Extended Length (mm)
553.2
Collapsed Length (mm)
341.0
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Eye 19mm
Lower Mount Type
Eye 19mm
Body Design
Smooth Body (Non-Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
Yes
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
No
Stroke/travel Length (in)
8.23
Replacement Mounting Kit
B4-KT1-Z234A00
Billet Reservoir Clamp Included
Yes

Installation & warranty

Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
