BetterB8 5160

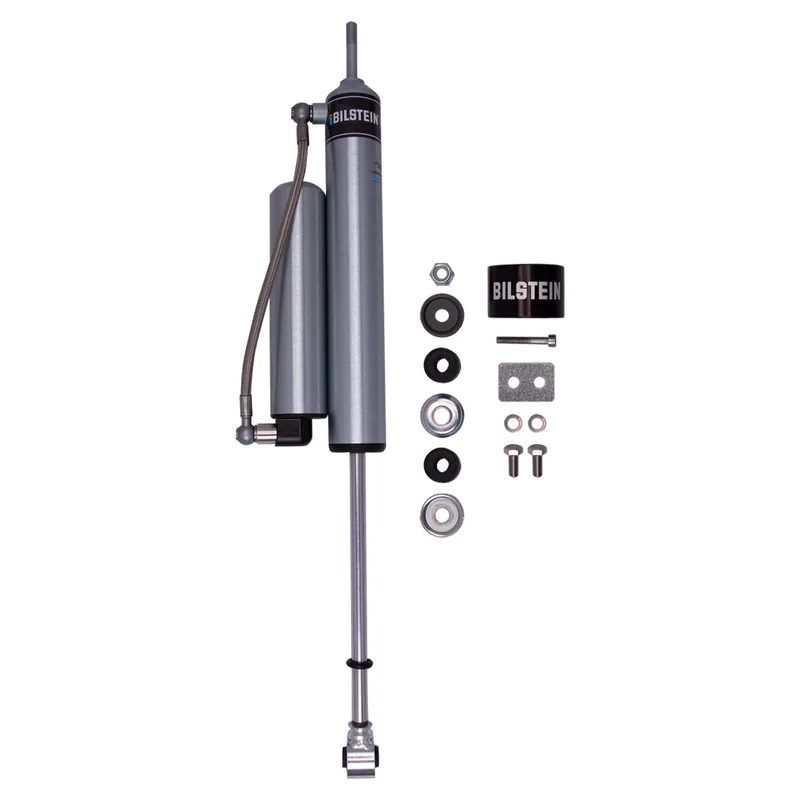

Bilstein 25-311259 B8 5160 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 25-242379
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 67 × 17 × 11 cm, 3.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
74 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tacoma | 2023 | Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail Special Edition | Rear | All |
|
| Toyota Tacoma | 2022 | Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport | Rear | All |
|
| Toyota Tacoma | 2021 | Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail | Rear | All |
|
| Toyota Tacoma | 2017–2020 | Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport | Rear | All |
|
| Toyota Tacoma | 2016 | Limited, SR, SR5, TRD Off-Road, TRD Sport | Rear | All |
|
| Toyota Tacoma | 2015 | Pre Runner, TRD Pro | Rear | All |
|
| Toyota Tacoma | 2005–2015 | Base | Rear | 4WD |
|
| Toyota Tacoma | 2005–2014 | Pre Runner | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.63
- Collapsed Length (in)
- 14.22
- Extended Length (mm)
- 600.3
- Collapsed Length (mm)
- 361.1
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 12mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.41
- Replacement Mounting Kit
- B4-KT1-Z008A00
- Billet Reservoir Clamp Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
