BestB8 8100

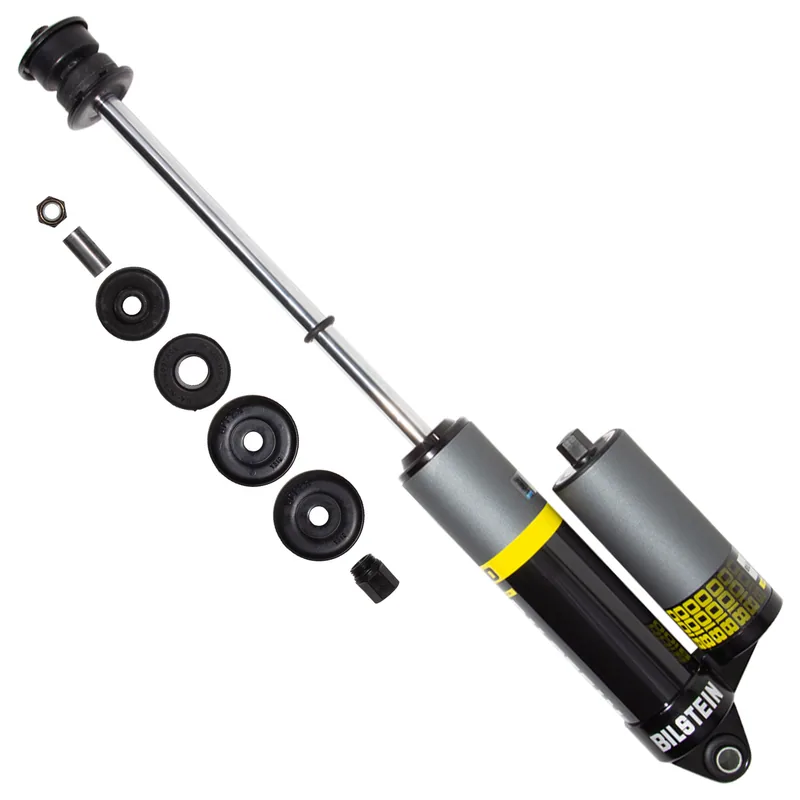

Bilstein 25-302233 B8 8100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 69 × 20 × 14 cm, 7.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

55 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 2500	Years	2026	Submodels	Big Horn, Black Express, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman, Warlock	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2024–2025	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2023	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2022	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies
Ram 2500	Years	2019–2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Tradesman	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Air Leveling Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 24.77
Collapsed Length (in): 16.75
Extended Length (mm): 629.2
Collapsed Length (mm): 425.5
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.1mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: EVO Grey
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: No
Replacement Mounting Kit: B4-KT1-Z223A01

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
