BestB8 8100

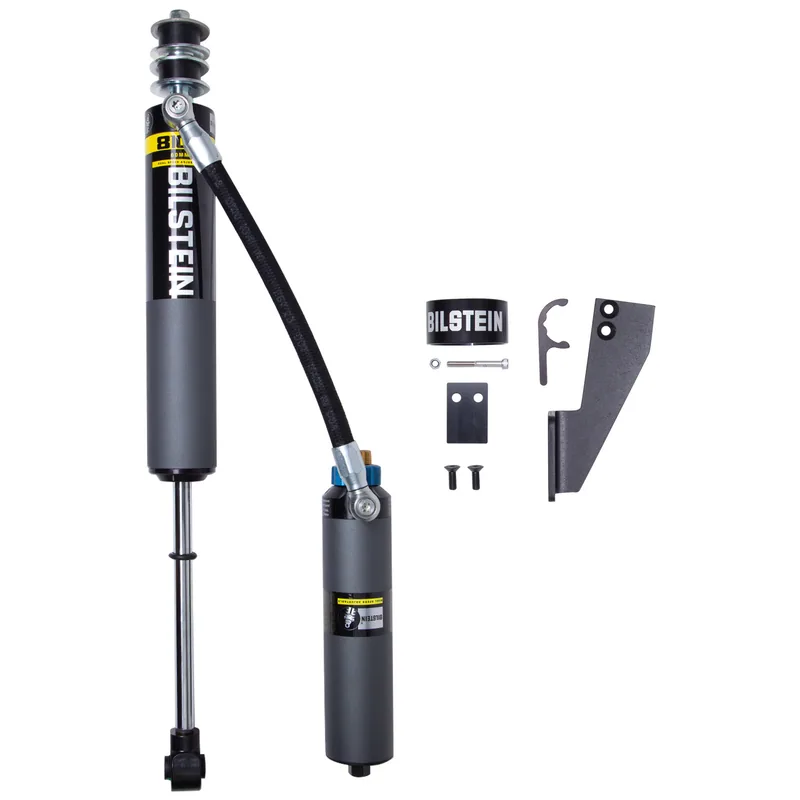

Bilstein 25-294125 B8 8100 DSA Shock Absorber

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

25-325805 B8 8100 Shock Absorber (Rear right)
25-326055 B8 8100 Bypass Shock Absorber (Rear right)
25-328929 B8 8100 DSA Shock Absorber (Rear right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 70 × 20 × 14 cm, 9.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

71 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tundra	Years	2021	Submodels	1794 Edition, Limited, Nightshade, Platinum, SR, SR5, TRD Pro, Trail	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies
Toyota Tundra	Years	2019–2020	Submodels	1794 Edition, Limited, Platinum, SR, SR5, TRD Pro	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies
Toyota Tundra	Years	2018	Submodels	1794 Edition, Limited, Platinum, SR, SR5	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies
Toyota Tundra	Years	2015–2017	Submodels	1794 Edition, Limited, Platinum, SR, SR5, TRD Pro	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies
Toyota Tundra	Years	2014	Submodels	1794 Edition, Limited, Platinum, SR, SR5	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies
Toyota Tundra	Years	2012–2013	Submodels	Base, Limited, Platinum	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies
Toyota Tundra	Years	2010–2011	Submodels	Base, Limited, Platinum, SR5	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies
Toyota Tundra	Years	2007–2009	Submodels	Base, Limited, SR5	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 6" backspacing Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 25.12
Collapsed Length (in): 15.60
Extended Length (mm): 638.0
Collapsed Length (mm): 397.0
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Eye 12.4mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: EVO Grey
Reservoir: Yes
Adjustable Damping: Click Adjusters for High and Low Speed Compression
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
