BestB8 8100

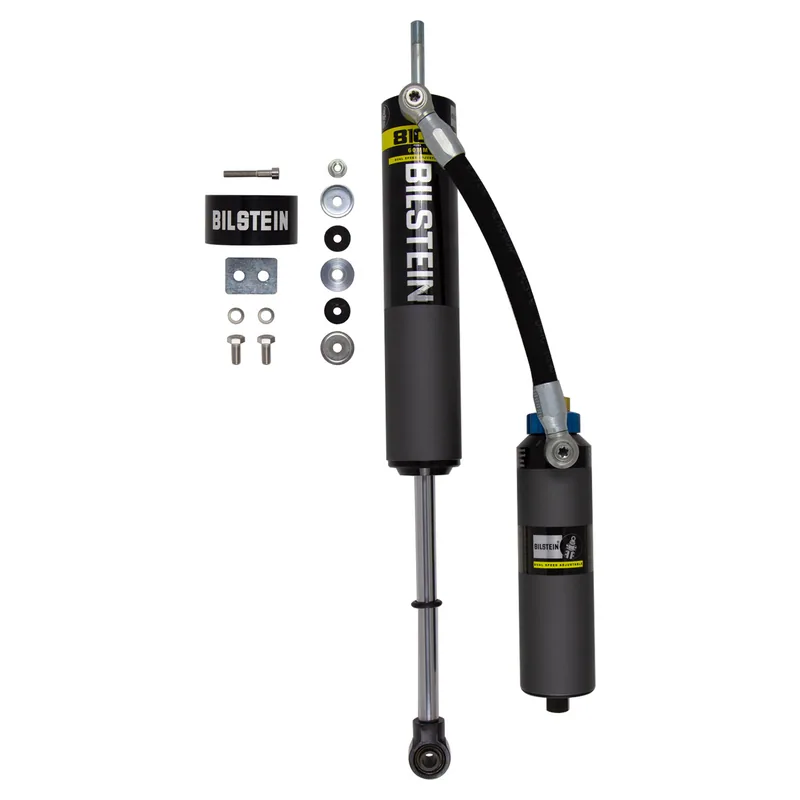

Bilstein 25-294071 B8 8100 DSA Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 64 × 20 × 14 cm, 8.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

74 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tacoma	Years	2023	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail Special Edition	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies
Toyota Tacoma	Years	2022	Submodels	Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies
Toyota Tacoma	Years	2021	Submodels	Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies
Toyota Tacoma	Years	2017–2020	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies
Toyota Tacoma	Years	2016	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Sport	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies
Toyota Tacoma	Years	2015	Submodels	Pre Runner, TRD Pro	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies
Toyota Tacoma	Years	2005–2015	Submodels	Base	Position	Rear	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies
Toyota Tacoma	Years	2005–2014	Submodels	Pre Runner	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Requires wheels with maximum of 4.75" backspacing Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.80
Collapsed Length (in): 14.25
Extended Length (mm): 579.0
Collapsed Length (mm): 362.0
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Eye 12mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: EVO Grey
Reservoir: Yes
Adjustable Damping: Click Adjusters for High and Low Speed Compression
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
