BetterB8 5160

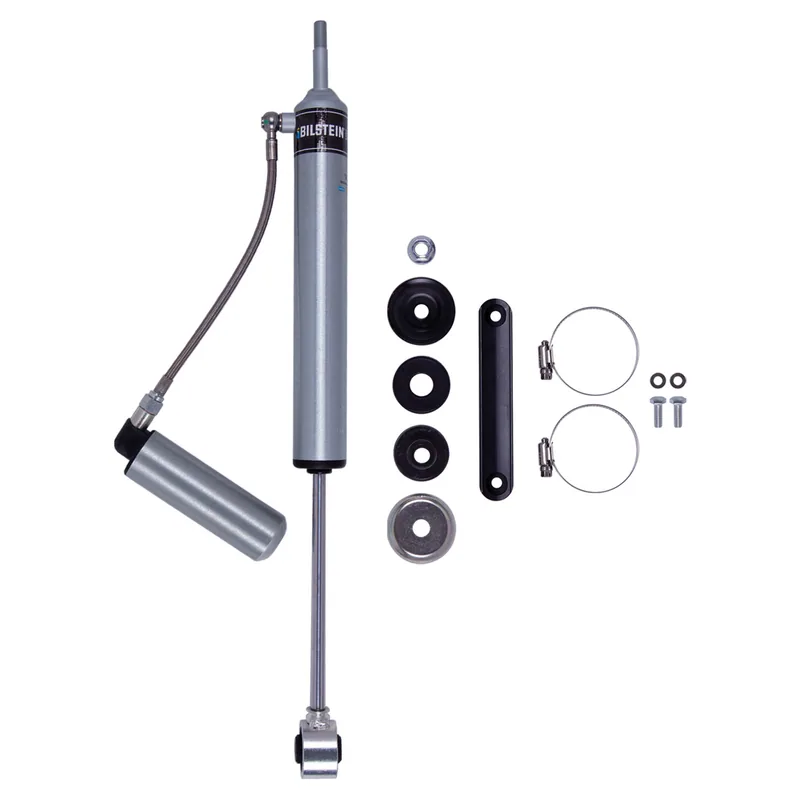

Bilstein 25-293432 B8 5160 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 68 × 17 × 11 cm, 3.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
13 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ram 2500 | 2014–2026 | Power Wagon | Front | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.04
- Collapsed Length (in)
- 15.22
- Extended Length (mm)
- 610.5
- Collapsed Length (mm)
- 386.7
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 8.82
- Replacement Mounting Kit
- B4-KT1-Z270A01
- Billet Reservoir Clamp Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
