BestB8 8100

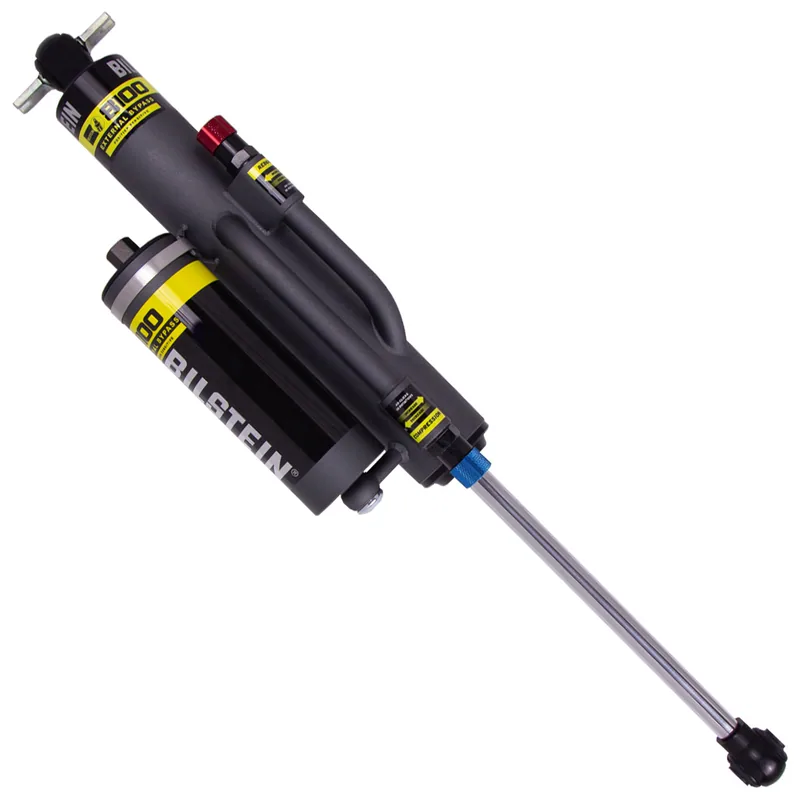

Bilstein 25-291322 B8 8100 Bypass Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 25-291315 B8 8100 Bypass Shock Absorber (Rear right)
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 77 × 20 × 14 cm, 9.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
76 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Wrangler | 2017 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport | Rear left | All |
|
| Jeep Wrangler | 2016 | Rubicon, Sahara, Sport, Sport S, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S | Rear left | All |
|
| Jeep Wrangler | 2011–2015 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport | Rear left | All |
|
| Jeep Wrangler | 2010 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X | Rear left | All |
|
| Jeep Wrangler | 2007–2009 | Rubicon, Sahara, Unlimited Rubicon, Unlimited Sahara, Unlimited X, X | Rear left | All |
|
| Jeep Wrangler JK | 2018 | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport | Rear left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 27.83
- Collapsed Length (in)
- 17.17
- Extended Length (mm)
- 707.0
- Collapsed Length (mm)
- 436.0
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Bar Pin
- Lower Mount Type
- Eye 12.1mm
- Body Design
- Bypass Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- EVO Grey
- Reservoir
- Yes
- Adjustable Damping
- Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
