BestB8 8100

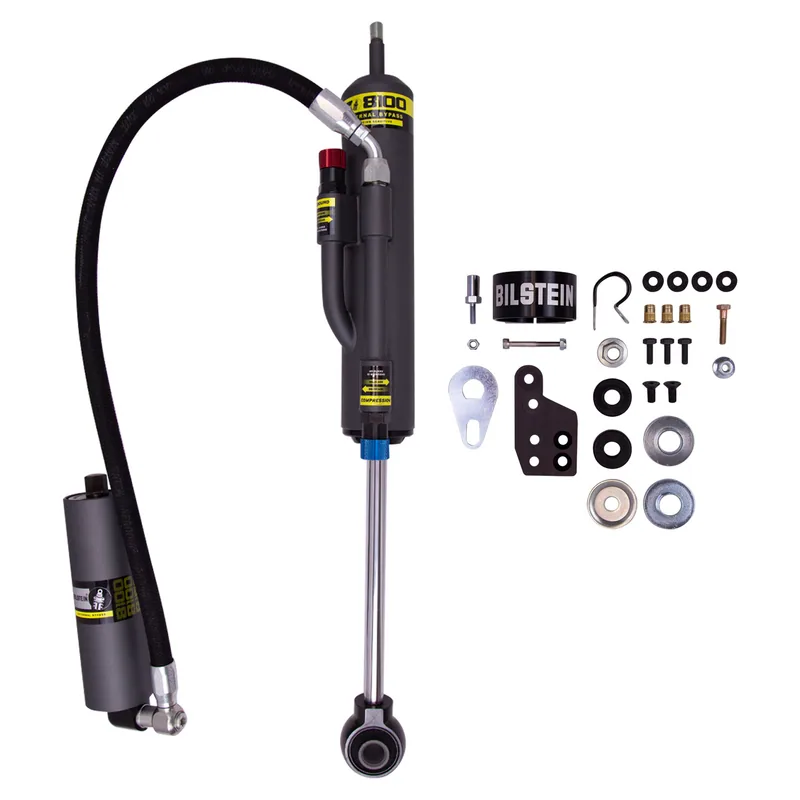

Bilstein 25-288162 B8 8100 Bypass Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 25-288155 B8 8100 Bypass Shock Absorber (Rear left)
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 68 × 20 × 14 cm, 10.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
10 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota FJ Cruiser | 2009–2014 | Base | Rear right | All |
|
| Toyota FJ Cruiser | 2008 | Base, Trail Teams Special Edition | Rear right | All |
|
| Toyota FJ Cruiser | 2007 | Base, TRD Special Edition | Rear right | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.09
- Collapsed Length (in)
- 14.72
- Extended Length (mm)
- 612.0
- Collapsed Length (mm)
- 374.0
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 19.25mm
- Body Design
- Bypass Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- EVO Grey
- Reservoir
- Yes
- Adjustable Damping
- Double Adjustable – Compression and Rebound
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
