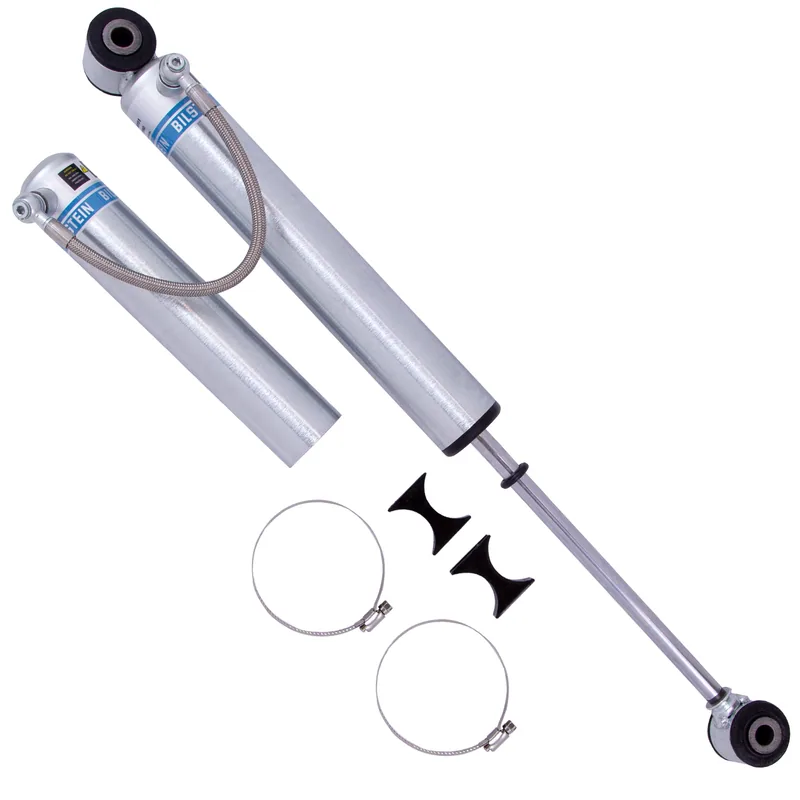

Bilstein 25-286151 B8 5160 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 69 × 17 × 11 cm, 3.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
28 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Nissan TITAN | 2024 | Platinum Reserve, SV | Rear | RWD |
|
| Nissan TITAN | 2022–2023 | Platinum Reserve, S, SV | Rear | RWD |
|
| Nissan TITAN | 2017–2021 | Platinum Reserve, S, SL, SV | Rear | RWD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.77
- Collapsed Length (in)
- 14.96
- Extended Length (mm)
- 629.2
- Collapsed Length (mm)
- 380.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 14mm
- Lower Mount Type
- Eye 14mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.81
- Optional Reservoir Clamp
- 11-176015
- Billet Reservoir Clamp Included
- No
- Optional Billet Reservoir Clamp
- 11-176015
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
