BetterB8 5160

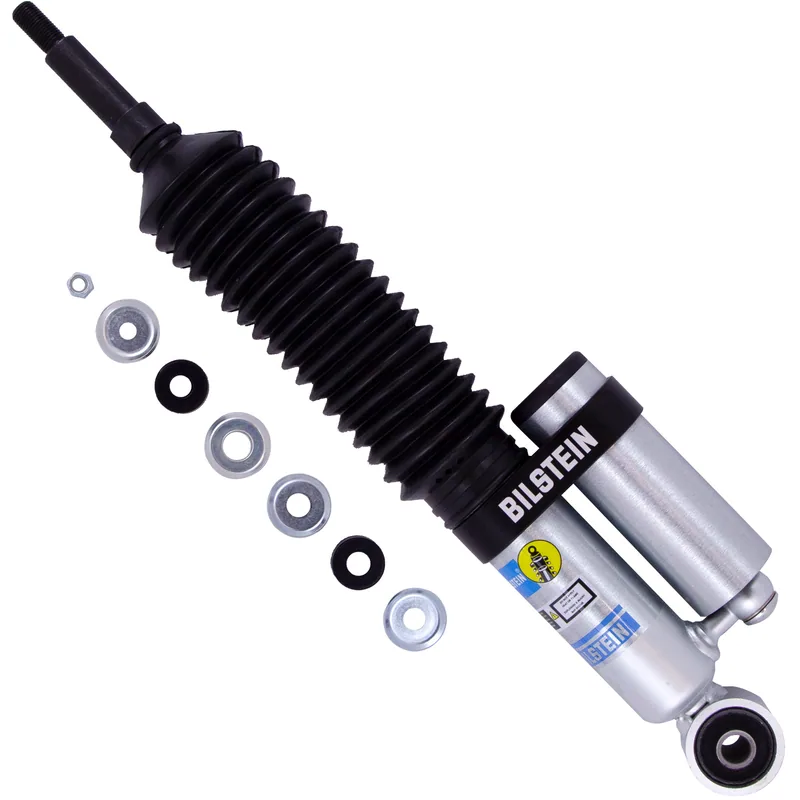

Bilstein 25-275100 B8 5160 Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 25-275124 B8 5160 Shock Absorber (Front right)
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 51 × 17 × 11 cm, 3.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
10 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Land Cruiser | 2006–2007 | Base | Front left | All |
|
| Toyota Land Cruiser | 1998–2005 | Base | Front left | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 17.35
- Collapsed Length (in)
- 11.48
- Extended Length (mm)
- 440.7
- Collapsed Length (mm)
- 291.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.2mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 5.87
- Replacement Mounting Kit
- B4-KT1-Z098A00
- Optional Reservoir Clamp
- N/A
- Billet Reservoir Clamp Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
