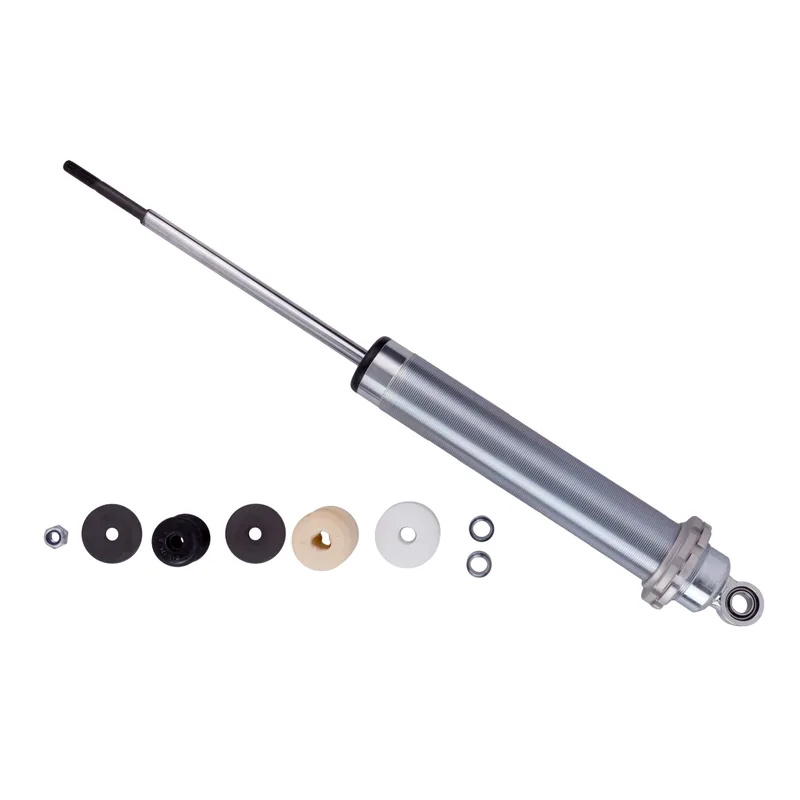

Bilstein 24-617321 Motorsports Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: K4-BE5-61732M9
Country of origin: Germany
Box: Ships in Bilstein's own box (about 61 × 11 × 11 cm, 2.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

56 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche 911	Years	1989	Submodels	Carrera, Speedster, Turbo Carrera	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1986–1988	Submodels	Carrera, Turbo Carrera	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1984–1985	Submodels	Carrera	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1978–1983	Submodels	SC	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1976–1977	Submodels	S, Turbo Carrera	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1975	Submodels	Carrera, S	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1974	Submodels	Base, Carrera, S	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1969–1973	Submodels	E, S, T	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1968	Submodels	Base, L, S	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1967	Submodels	Base, S	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 911	Years	1965–1966	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 912	Years	1976	Submodels	E	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 912	Years	1965–1969	Submodels	Base	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies
Porsche 930	Years	1978–1979	Submodels	Turbo	Position	Rear	Drive / body / engine	All	Notes	RSR Version 2 Setting: 2400/1800 For use with M14 lower mounting bolt Requires additional components and racing springs Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 21.57
Collapsed Length (in): 17.19
Extended Length (mm): 548.0
Collapsed Length (mm): 436.5
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: 15mm Heim
Body Design: Threaded Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Valve Code: N/A
Stroke/travel Length (in): 4.38
Compression @0.52m/s: 1875
Rebound @0.52m/s: 2040
Body Material: Steel
Spring Hardware: N/A
Piston Type: Linear
Base Valve: No
Service Type: Factory Rebuildable
Position: Rear
Racing Type: Road Race
Stroke/travel Length (in) Rounded: 4

Installation & warranty

Bilstein general installation instructions (PDF)

Limited 90-Day Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
