BetterB8 5100

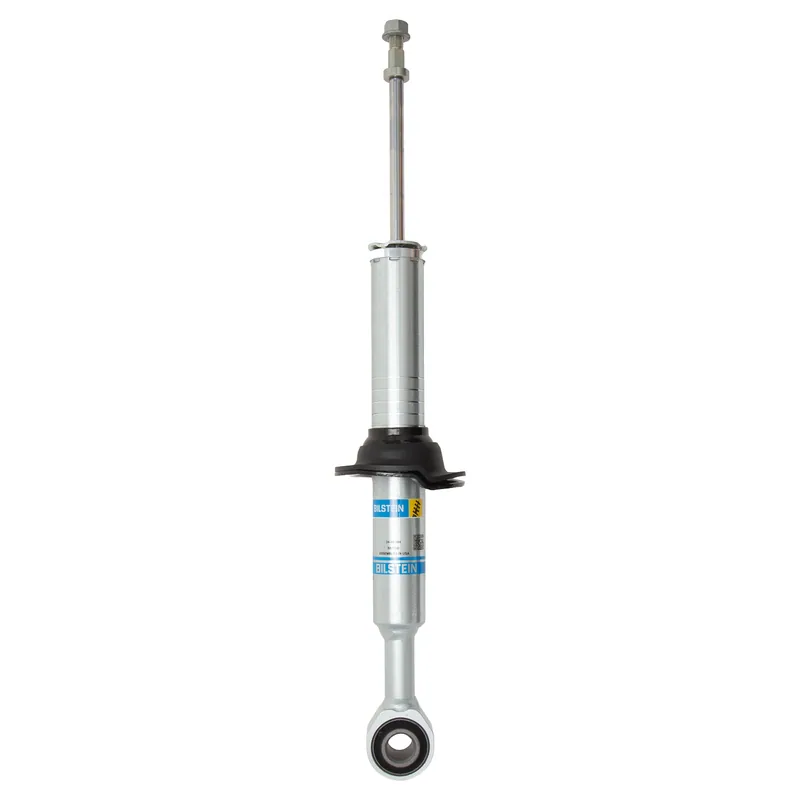

Bilstein 24-347464 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 69 × 11 × 11 cm, 4.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
17 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota 4Runner | 2025–2026 | SR5, TRD Off-Road, TRD Off-Road Premium, TRD Sport, TRD Sport Premium | Front | All |
|
| Toyota 4Runner | 2025–2026 | SR5, TRD Sport, TRD Sport Premium | Front | 4WD |
|
| Toyota Land Cruiser | 2025–2026 | 1958, Base | Front | All |
|
| Toyota Land Cruiser | 2024 | 1958, Base, First Edition | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.46
- Collapsed Length (in)
- 18.96
- Extended Length (mm)
- 621.3
- Collapsed Length (mm)
- 481.7
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 24.3mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 5.50
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
