Bilstein 24-347433 B8 5100 Shock Absorber
BetterB8 5100

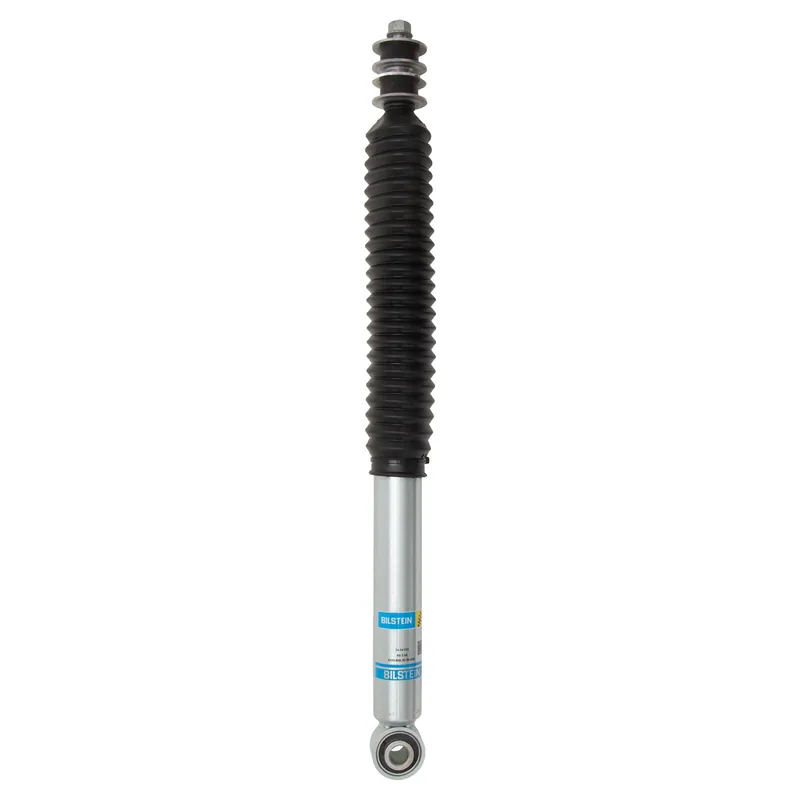

Bilstein 24-347433 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
United States
Box
Ships in Bilstein's own box (about 72 × 11 × 11 cm, 3.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

17 vehicles, newest years first

Toyota 4Runner2025–2026TRD Off-Road, TRD Off-Road PremiumRearAll
  • Fits Vehicles With 0-1.75" Rear Lift
  • Fits Vehicles With 1-1.75" Rear Lift
  • Requires extended sway bar links
  • Check which applies
Toyota 4Runner2025–2026SR5, TRD Sport, TRD Sport PremiumRear4WD
  • Fits Vehicles With 0-1.75" Rear Lift
  • Fits Vehicles With 1-1.75" Rear Lift
  • Requires extended sway bar links
  • Check which applies
Toyota Land Cruiser2025–20261958, BaseRearAll
  • Fits Vehicles With 0-1.75" Rear Lift
Toyota Land Cruiser20241958, Base, First EditionRearAll
  • Fits Vehicles With 0-1.75" Rear Lift

Specifications

As Bilstein publishes them.

Extended Length (in)
25.86
Collapsed Length (in)
16.37
Extended Length (mm)
656.9
Collapsed Length (mm)
415.8
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Stem
Lower Mount Type
Eye 19.1mm
Body Design
Smooth Body (Non-Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
Yes
Spring Seat Included
No
Stroke/travel Length (in)
9.49

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
