BetterB8 5100

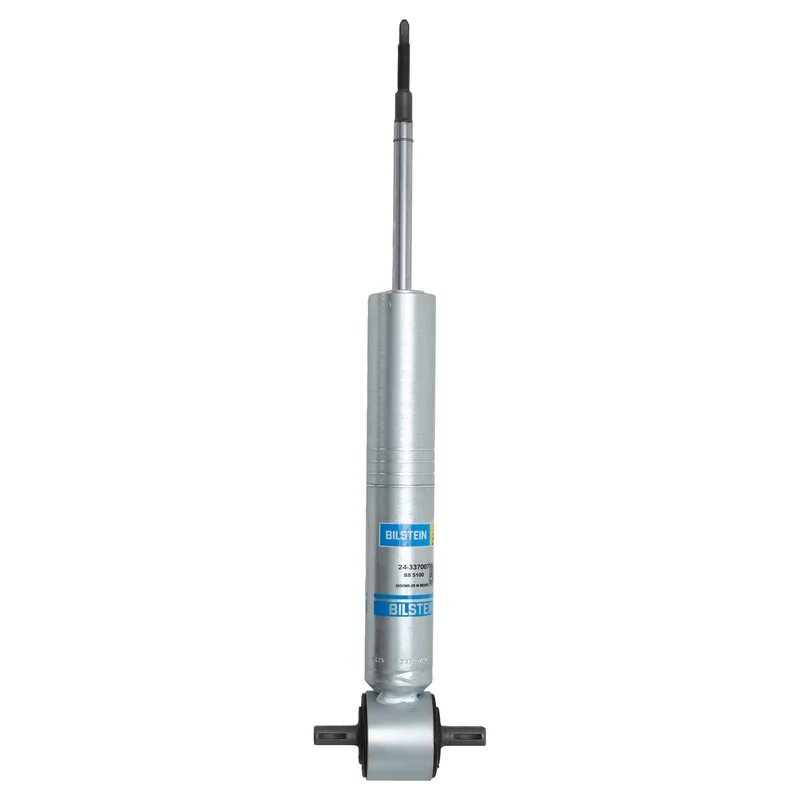

Bilstein 24-336994 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-251976
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 54 × 13 × 13 cm, 3.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
24 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Tahoe | 2015–2020 | LS, LT | Front | All |
|
| GMC Yukon | 2015–2020 | SLE, SLT | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.89
- Collapsed Length (in)
- 15.00
- Extended Length (mm)
- 479.7
- Collapsed Length (mm)
- 381.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Bar Pin
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 3.89
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
