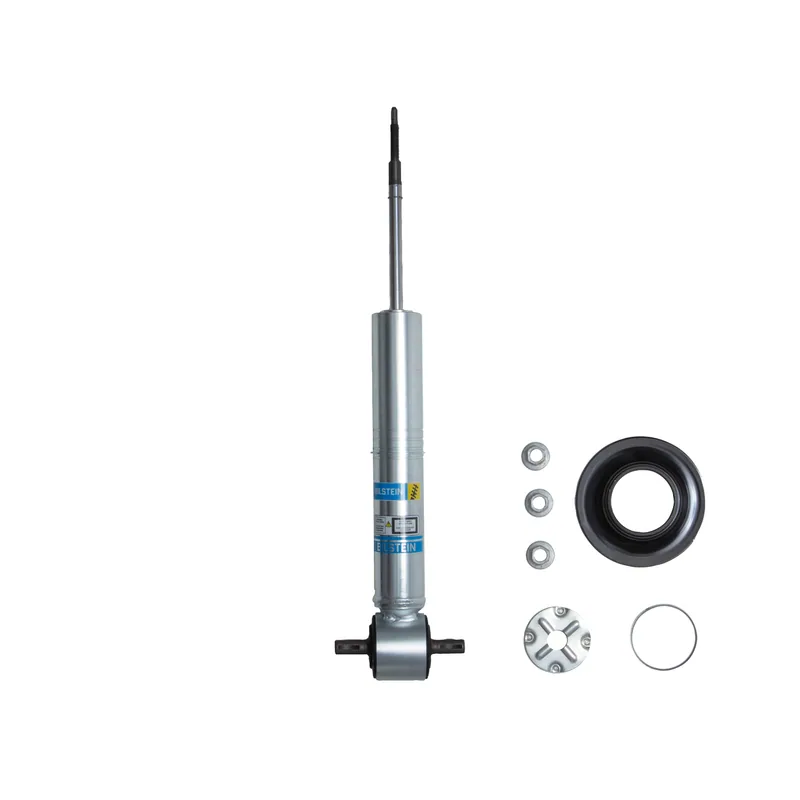

Bilstein 24-336895 B8 5100 Ride Height Adjustable Shock Absorber
BetterB8 5100

Bilstein 24-336895 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Replaces Bilstein
24-238304
Country of origin
Mexico
Box
Ships in Bilstein's own box (about 54 × 13 × 13 cm, 3.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

48 vehicles, newest years first

Chevrolet Silverado 15002016–2018Custom, High Country, LS, LT, LTZ, WTFrontAll
  • Provides 0-1.85" Front Lift
Chevrolet Silverado 15002015High Country, LS, LT, LTZ, WTFrontAll
  • Provides 0-1.85" Front Lift
Chevrolet Silverado 15002014High Country, LT, LTZ, WTFrontAll
  • Provides 0-1.85" Front Lift
Chevrolet Silverado 1500 LD2019Custom, LT, WTFrontAll
  • Provides 0-1.85" Front Lift
  • For Silverado 1500 LD only – same as 2014-2018 body style.
  • Check which applies
GMC Sierra 15002015–2018Base, SLE, SLTFrontAll
  • Provides 0-1.85" Front Lift
GMC Sierra 15002014Base, Denali, SLE, SLTFrontAll
  • Provides 0-1.85" Front Lift
GMC Sierra 1500 Limited2019Base, SLEFrontAll
  • Provides 0-1.85" Front Lift
  • For Sierra 1500 Limited only – same as 2014-2018 body style
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
18.89
Collapsed Length (in)
15.00
Extended Length (mm)
479.7
Collapsed Length (mm)
381.0
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Stem
Lower Mount Type
Bar Pin
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
Yes
Stroke/travel Length (in)
3.89

Installation & warranty

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
