BetterB6 4600

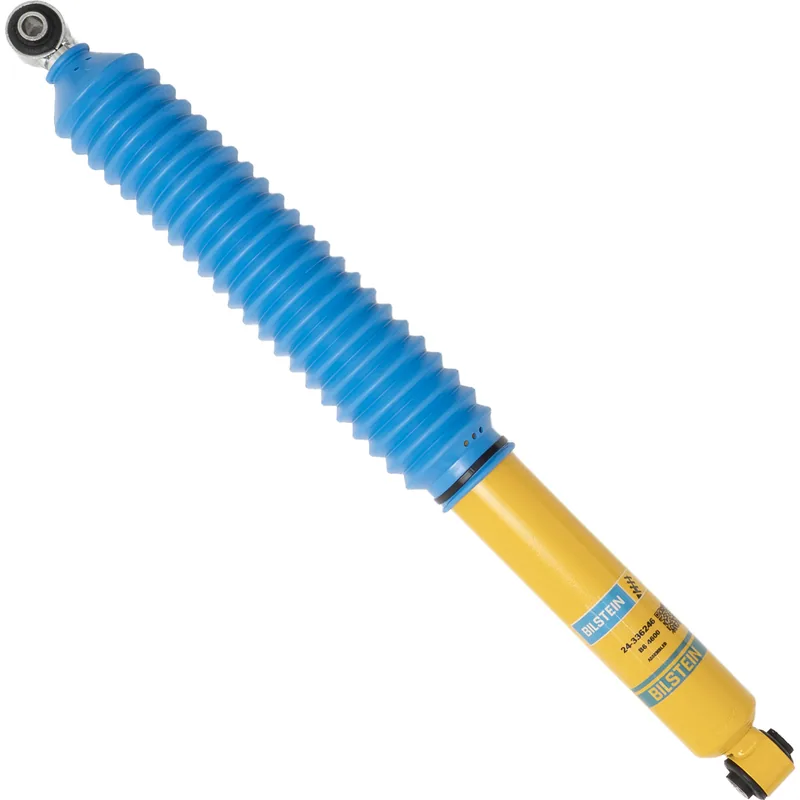

Bilstein 24-336246 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Ford MB3Z 18125-BN, Ford MB3Z 18125-BP, Ford MB3Z 18125-BQ, Ford MB3Z 18125-BT, Ford MB3Z 18125-BU
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 68 × 11 × 11 cm, 2.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
9 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Ranger | 2024–2026 | Lariat, XL, XLT | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.11
- Collapsed Length (in)
- 16.22
- Extended Length (mm)
- 612.4
- Collapsed Length (mm)
- 411.9
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 12.1mm
- Lower Mount Type
- Eye 12.1mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 7.89
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
