BetterB8 5100

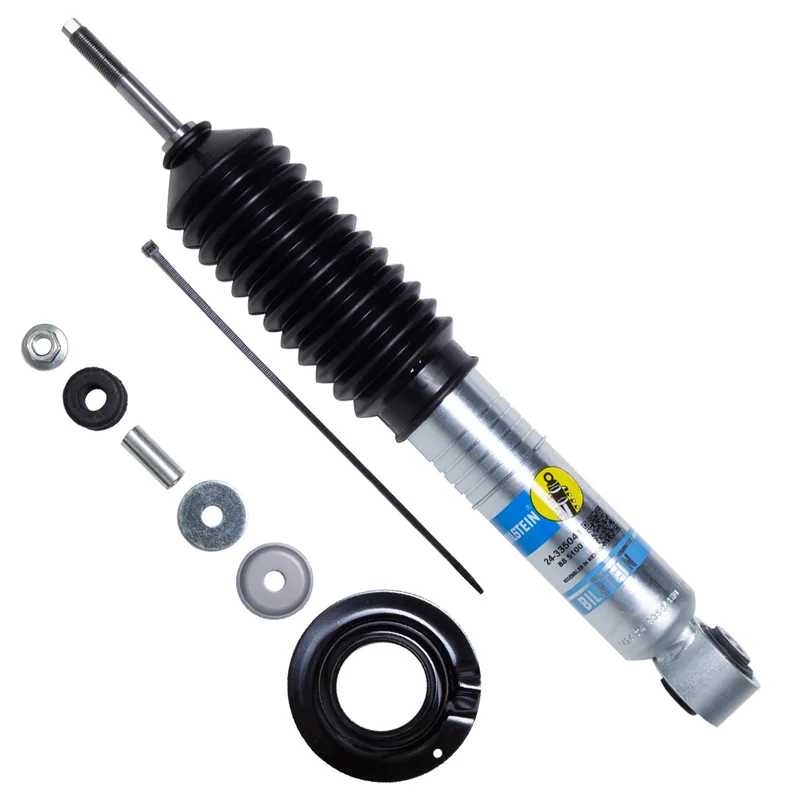

Bilstein 24-335041 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 45 × 11 × 11 cm, 2.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
22 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Nissan Frontier | 2026 | PRO-4X, PRO-X, S, SV | Front | All |
|
| Nissan Frontier | 2024–2025 | PRO-4X, PRO-X, S, SL, SV | Front | All |
|
| Nissan Frontier | 2022–2023 | PRO-4X, PRO-X, S, SV | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 15.18
- Collapsed Length (in)
- 10.69
- Extended Length (mm)
- 385.5
- Collapsed Length (mm)
- 271.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.49
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
