BetterB8 5100

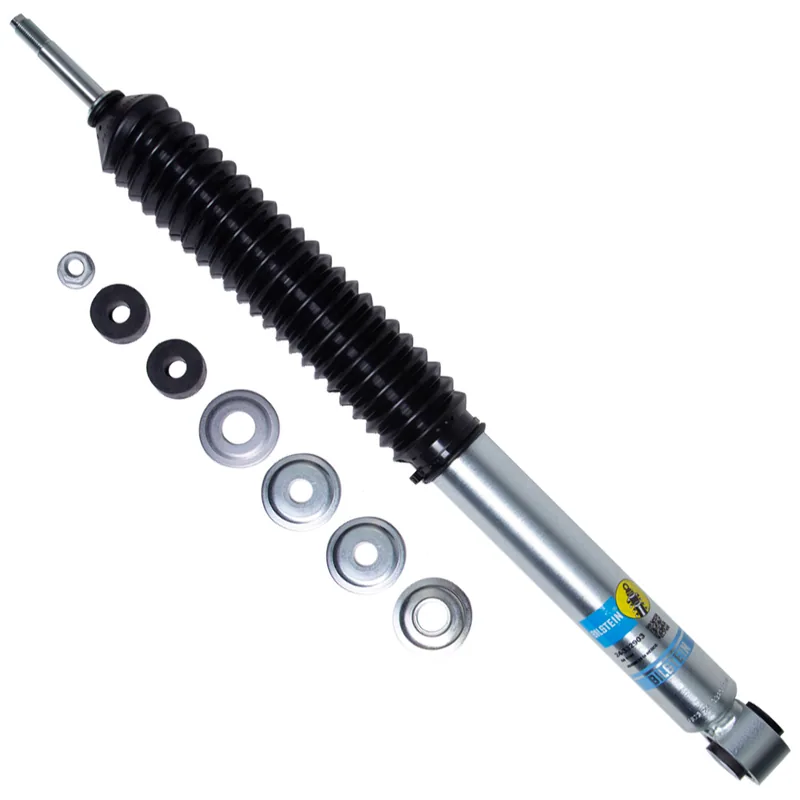

Bilstein 24-332903 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 70 × 11 × 11 cm, 3.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

48 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Sequoia	Years	2025–2026	Submodels	1794 Edition, Capstone, Limited, Platinum, SR5	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Fits Vehicles With 0-1.5" Rear Lift Without Rear Air Suspension Without Adaptive Variable Suspension (AVS) Check which applies
Toyota Sequoia	Years	2023–2024	Submodels	Capstone, Platinum	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1.5" Rear Lift Fits Vehicles With 0-1.5" Rear Lift Without Rear Air Suspension Without Adaptive Variable Suspension (AVS) Check which applies
Toyota Sequoia	Years	2023–2024	Submodels	Limited, SR5	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 0-1.5" Rear Lift Fits Vehicles With 0-1.5" Rear Lift Without Rear Air Suspension Without Adaptive Variable Suspension (AVS) Check which applies
Toyota Tundra	Years	2025–2026	Submodels	1794 Edition, Capstone, Limited, Platinum, SR, SR5	Position	Rear	Drive / body / engine	All	Notes	Heavy Load Option – 500 lb Constant Rear Weight Recommended for use with Heavy Load B12 Special spring kit 53-329257 Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Heavy Load Option – 500 lb Constant Rear Weight Recommended for use with Heavy Load B12 Special spring kit 53-329257 Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Without Adaptive Variable Suspension (AVS) Check which applies
Toyota Tundra	Years	2022–2024	Submodels	1794 Edition, Capstone, Limited, Platinum, SR, SR5	Position	Rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Heavy Load Option – 500 lb Constant Rear Weight Recommended for use with Heavy Load B12 Special spring kit 53-329257 Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Heavy Load Option – 500 lb Constant Rear Weight Recommended for use with Heavy Load B12 Special spring kit 53-329257 Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Without Adaptive Variable Suspension (AVS) Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 25.06
Collapsed Length (in): 16.59
Extended Length (mm): 636.5
Collapsed Length (mm): 421.4
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Eye 19.1mm
Body Design: Smooth Body (Non-coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 8.47

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
