BetterB8 5100

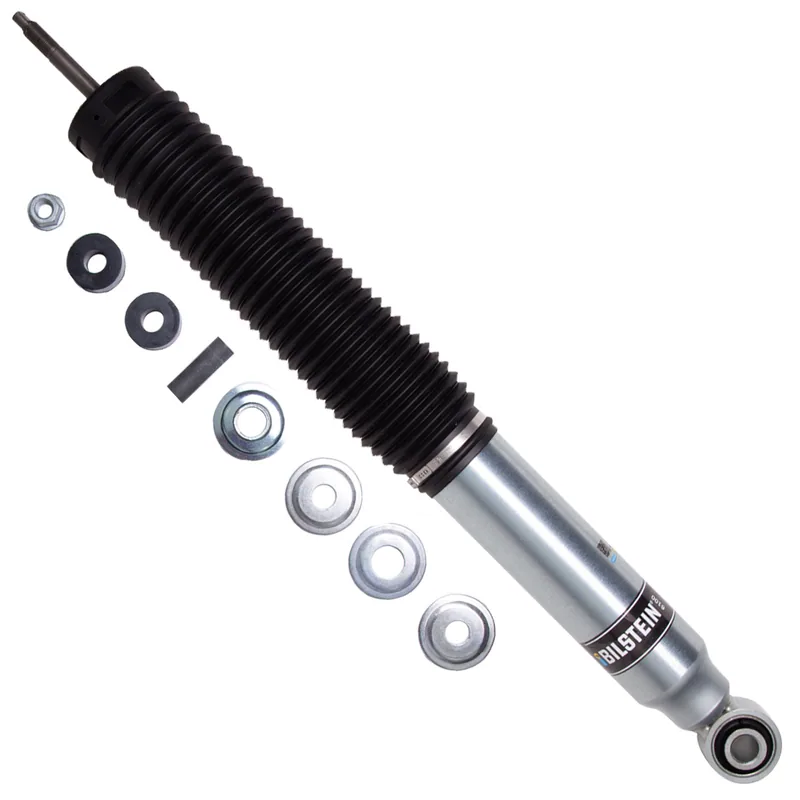

Bilstein 24-329248 B8 6100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 70 × 14 × 14 cm, 5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
30 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tundra | 2025–2026 | 1794 Edition, Capstone, Limited, Platinum, SR, SR5 | Rear | All |
|
| Toyota Tundra | 2022–2024 | 1794 Edition, Capstone, Limited, Platinum, SR, SR5 | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 25.18
- Collapsed Length (in)
- 16.59
- Extended Length (mm)
- 639.5
- Collapsed Length (mm)
- 421.4
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 19.1mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 8.59
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
