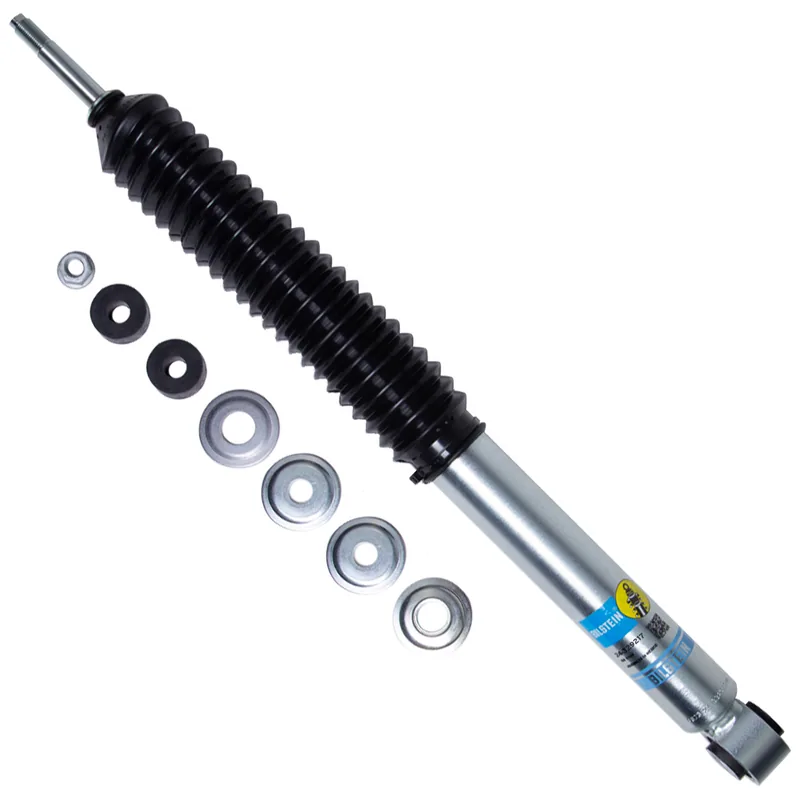

Bilstein 24-329217 B8 5100 Shock Absorber
BetterB8 5100

Bilstein 24-329217 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Mexico
Box
Ships in Bilstein's own box (about 70 × 11 × 11 cm, 3.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

30 vehicles, newest years first

Toyota Tundra2025–20261794 Edition, Capstone, Limited, Platinum, SR, SR5RearAll
  • Fits Vehicles With 0-1" Rear Lift
  • Without Rear Air Suspension
  • Fits Vehicles With 0-1" Rear Lift
  • Without Rear Air Suspension
  • Without Adaptive Variable Suspension (AVS)
  • Check which applies
Toyota Tundra2022–20241794 Edition, Capstone, Limited, Platinum, SR, SR5RearAll
  • Spring type: Front: Coil , Rear: Coil
  • Fits Vehicles With 0-1" Rear Lift
  • Without Rear Air Suspension
  • Fits Vehicles With 0-1" Rear Lift
  • Without Rear Air Suspension
  • Without Adaptive Variable Suspension (AVS)
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
25.06
Collapsed Length (in)
16.59
Extended Length (mm)
636.5
Collapsed Length (mm)
421.4
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
Stem
Lower Mount Type
Eye 19.1mm
Body Design
Smooth Body (Non-coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
Black Bellows
Spring Seat Included
Yes
Stroke/travel Length (in)
8.47

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
