BetterB6 4600

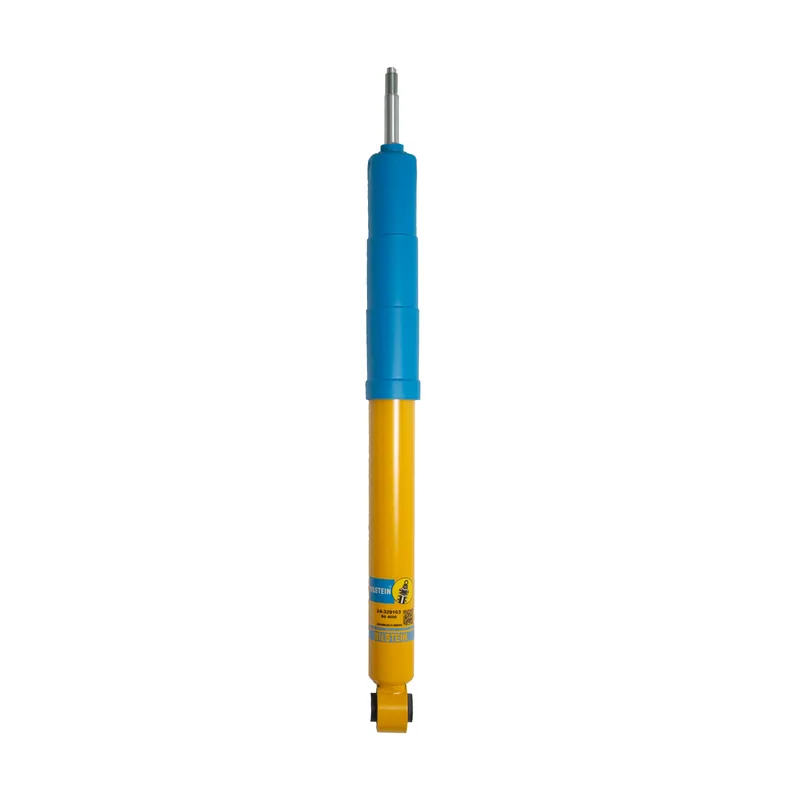

Bilstein 24-329163 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Toyota 48530-8Z182, Toyota 48530-8Z183, Toyota 48530-8Z184, Toyota 48530-8Z185, Toyota 48530-8Z188, Toyota 48530-8Z189
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 68 × 11 × 11 cm, 3.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
30 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Tundra | 2025–2026 | 1794 Edition, Capstone, Limited, Platinum, SR, SR5 | Rear | All |
|
| Toyota Tundra | 2022–2024 | 1794 Edition, Capstone, Limited, Platinum, SR, SR5 | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.21
- Collapsed Length (in)
- 16.59
- Extended Length (mm)
- 615.0
- Collapsed Length (mm)
- 421.4
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 19.1mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 7.62
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
