BetterB6 4600

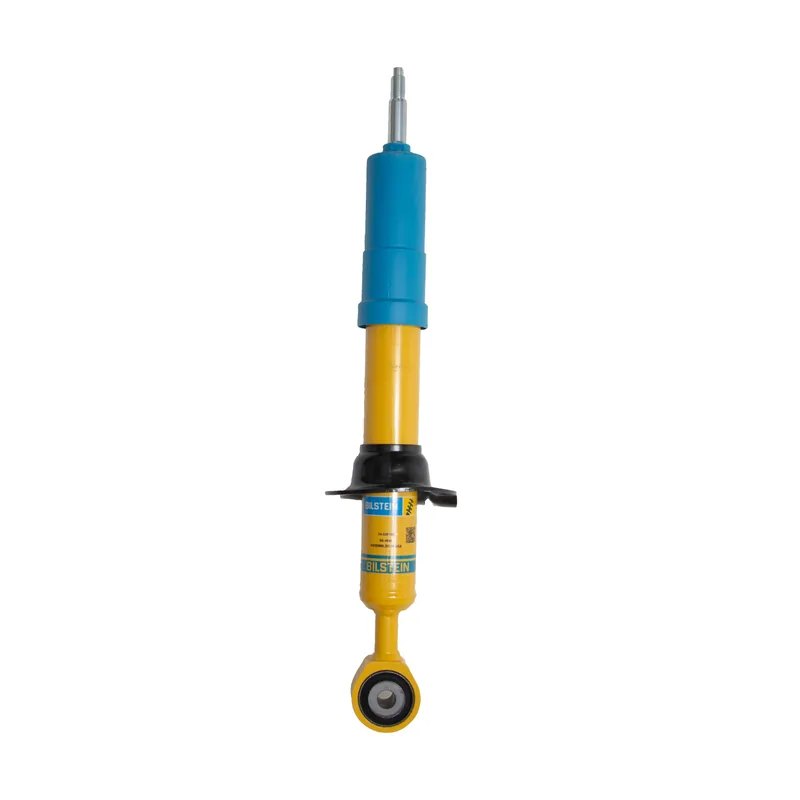

Bilstein 24-329156 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Toyota 48510-8Z530, Toyota 48510-8Z531, Toyota 48510-8Z534, Toyota 48510-8Z535, Toyota 48510-8Z536, Toyota 48510-8Z537 and 3 more
Toyota 48510-8Z539, Toyota 48510-8Z540, Toyota 48510-8Z541
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 57 × 11 × 11 cm, 3.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
48 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Sequoia | 2025–2026 | 1794 Edition, Capstone, Limited, Platinum, SR5 | Front | All |
|
| Toyota Sequoia | 2023–2024 | Capstone, Limited, Platinum, SR5 | Front | All |
|
| Toyota Tundra | 2022–2026 | 1794 Edition, Capstone, Limited, Platinum, SR, SR5 | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.84
- Collapsed Length (in)
- 15.91
- Extended Length (mm)
- 503.9
- Collapsed Length (mm)
- 404.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 16.2mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 3.93
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
