BetterB6 4600

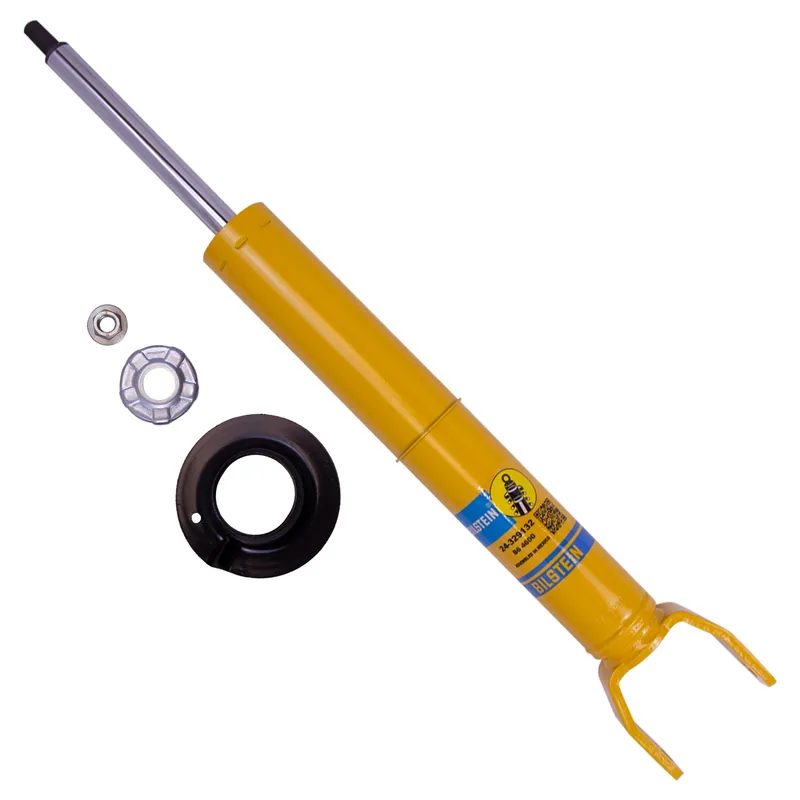

Bilstein 24-329132 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Dodge 68404035AD, Dodge 68404036AD, Dodge 68404037AD
- Replaces Bilstein
- 24-228831
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 63 × 11 × 11 cm, 3.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
56 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ram 1500 | 2026 | Big Horn, Express, Laramie, Lone Star, Rebel, Tradesman, Warlock | Front | All |
|
| Ram 1500 | 2025 | Big Horn, Laramie, Lone Star, Rebel, Tradesman, Tradesman HFE, Warlock | Front | All |
|
| Ram 1500 | 2024 | Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman | Front | All |
|
| Ram 1500 | 2023 | Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman | Front | All |
|
| Ram 1500 | 2021–2022 | Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman | Front | All |
|
| Ram 1500 | 2019–2020 | Big Horn, HFE, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.08
- Collapsed Length (in)
- 16.00
- Extended Length (mm)
- 560.9
- Collapsed Length (mm)
- 406.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Clevis
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 6.08
- Replacement Mounting Kit
- B4-KT1-Z417A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
