BetterB8 5100

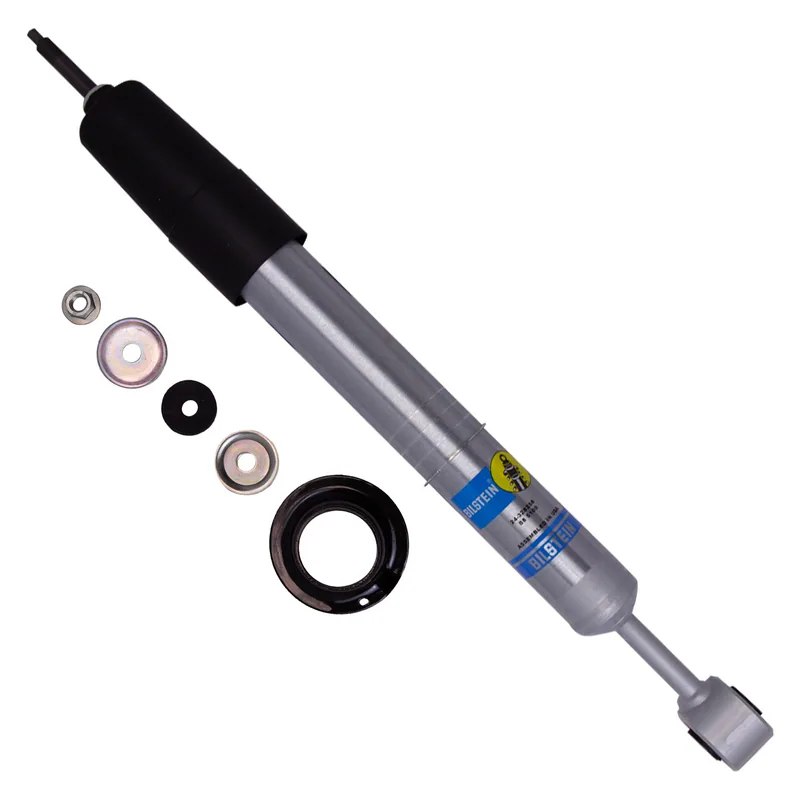

Bilstein 24-328258 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-196499
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 63 × 11 × 11 cm, 3.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
94 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Lexus GX460 | 2023 | Base, Black Line Edition, Luxury, Premium | Front | All |
|
| Lexus GX460 | 2014–2022 | Base, Luxury, Premium | Front | All |
|
| Lexus GX460 | 2010–2013 | Base, Premium | Front | All |
|
| Toyota 4Runner | 2024 | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium | Front | All |
|
| Toyota 4Runner | 2023 | 40th Anniversary Edition, SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium | Front | All |
|
| Toyota 4Runner | 2021–2022 | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, Trail, Venture | Front | All |
|
| Toyota 4Runner | 2020 | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, Venture | Front | All |
|
| Toyota 4Runner | 2018–2019 | SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium | Front | All |
|
| Toyota 4Runner | 2017 | SR5, TRD Off-Road | Front | All |
|
| Toyota 4Runner | 2010–2016 | SR5, Trail | Front | All |
|
| Toyota FJ Cruiser | 2014 | Base | Front | All |
|
| Toyota FJ Cruiser | 2010–2013 | Base | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.31
- Collapsed Length (in)
- 17.50
- Extended Length (mm)
- 566.8
- Collapsed Length (mm)
- 444.6
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.2mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Straight
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.81
- Replacement Mounting Kit
- B4-KT1-Z333A01
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
