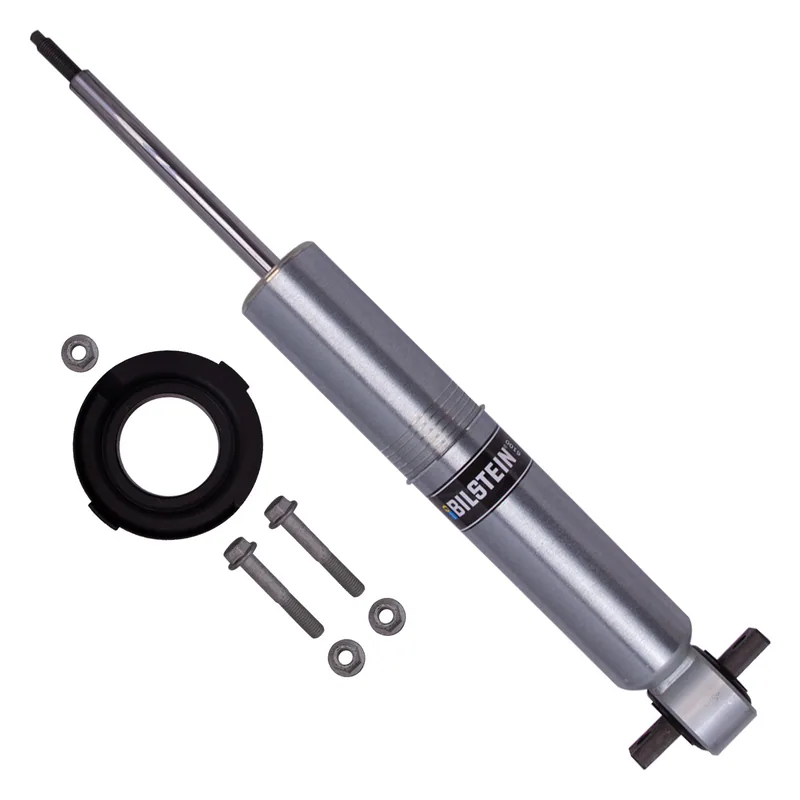

Bilstein 24-325561 B8 6100 Ride Height Adjustable Shock Absorber
BetterB8 5100

Bilstein 24-325561 B8 6100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
United States
Box
Ships in Bilstein's own box (about 64 × 14 × 14 cm, 5.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

30 vehicles, newest years first

Ford Bronco2025–2026Badlands, BaseFrontAll
  • Doors: 2 Door
  • Provides 0-1.6" Front Lift
  • With Sasquatch Package Only
  • Without HOSS 3.0 Package
  • Provides 0.7-2.3" Front Lift without Sasquatch package
  • 0-1.6" Front Lift with Sasquatch package
  • Check which applies
Ford Bronco2024Badlands, Big Bend, Black Diamond, Heritage Edition, Heritage Limited Edition, Outer BanksFrontAll
  • Doors: 2 Door
  • Provides 0-1.6" Front Lift
  • Provides 0-1.6" Front Lift
  • With Sasquatch Package Only
  • Provides 0.7-2.3" Front Lift without Sasquatch package
  • 0-1.6" Front Lift with Sasquatch package
  • Check which applies
Ford Bronco2023Badlands, Base, Big Bend, Black Diamond, Heritage Edition, Heritage Limited Edition, Outer BanksFrontAll
  • Doors: 2 Door
  • Provides 0-1.6" Front Lift
  • Provides 0-1.6" Front Lift
  • With Sasquatch Package Only
  • Provides 0.7-2.3" Front Lift without Sasquatch package
  • 0-1.6" Front Lift with Sasquatch package
  • Check which applies
Ford Bronco2022Badlands, Base, Big Bend, Black Diamond, Outer Banks, WildtrakFrontAll
  • Doors: 2 Door
  • Provides 0-1.6" Front Lift
  • Provides 0-1.6" Front Lift
  • With Sasquatch Package Only
  • Provides 0.7-2.3" Front Lift without Sasquatch package
  • 0-1.6" Front Lift with Sasquatch package
  • Check which applies
Ford Bronco2021Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, WildtrakFrontAll
  • Doors: 2 Door
  • Provides 0-1.6" Front Lift
  • Provides 0-1.6" Front Lift
  • With Sasquatch Package Only
  • Provides 0.7-2.3" Front Lift without Sasquatch package
  • 0-1.6" Front Lift with Sasquatch package
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
22.80
Collapsed Length (in)
16.62
Extended Length (mm)
579.2
Collapsed Length (mm)
422.2
Body Diameter (od)
2.65 in.
Piston Diameter
60mm
Shaft Diameter
18mm
Upper Mount Type
Stem
Lower Mount Type
Crossbar
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
Yes
Stroke/travel Length (in)
6.18
Replacement Mounting Kit
B4-KT1-Z471A00

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty

100% genuine Bilstein, from authorized North American distribution.
