BetterB6 4600

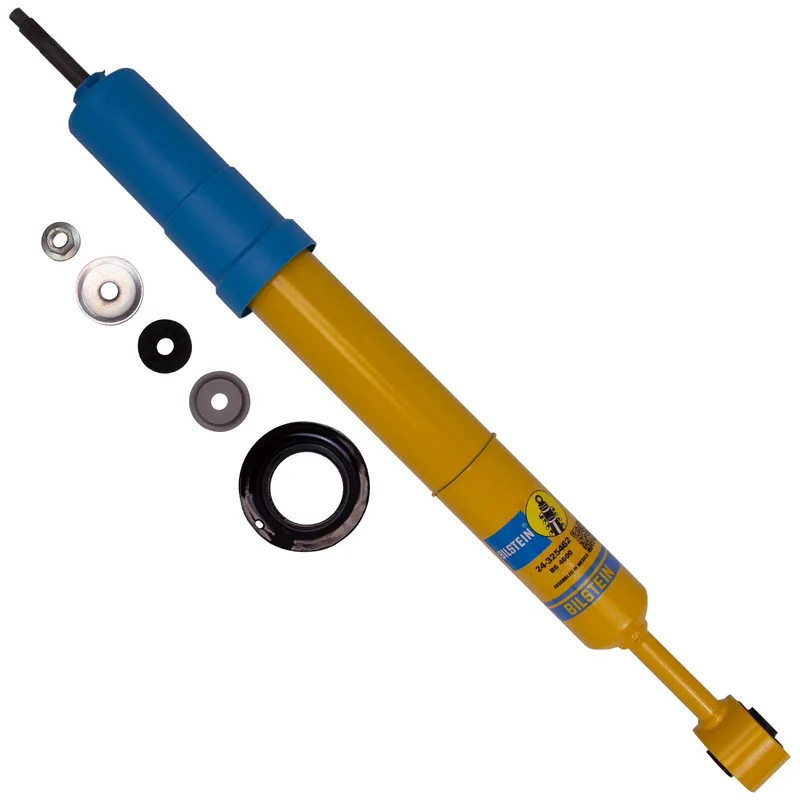

Bilstein 24-325462 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Toyota 48510-09L80, Toyota 48510-09L81, Toyota 48510-09L90, Toyota 48510-09S50, Toyota 48510-09U50, Toyota 48510-09U60 and 14 more
Toyota 48510-09U61, Toyota 48510-69525, Toyota 48510-69675, Toyota 48510-80086, Toyota 48510-80087, Toyota 48510-80269, Toyota 48510-80270, Toyota 48510-80314, Toyota 48510-80315, Toyota 48510-80328, Toyota 48510-80329, Toyota 48510-80396, Toyota 48510-80397, Toyota 48510-A9630
- Replaces Bilstein
- 24-188401
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 63 × 11 × 11 cm, 2.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
48 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Lexus GX470 | 2003–2009 | Base | Front | All |
|
| Toyota 4Runner | 2003–2009 | Limited, SR5 | Front | All |
|
| Toyota FJ Cruiser | 2009 | Base | Front | All | — |
| Toyota FJ Cruiser | 2008 | Base, Trail Teams Special Edition | Front | All | — |
| Toyota FJ Cruiser | 2007 | Base, TRD Special Edition | Front | All | — |
| Toyota Tacoma | 2005–2015 | Pre Runner | Front | All | — |
| Toyota Tacoma | 2005–2015 | Base | Front | 4WD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.19
- Collapsed Length (in)
- 17.19
- Extended Length (mm)
- 563.7
- Collapsed Length (mm)
- 436.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.2mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 5.00
- Replacement Mounting Kit
- B4-KT1-Z333A01
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
