BetterB8 5100

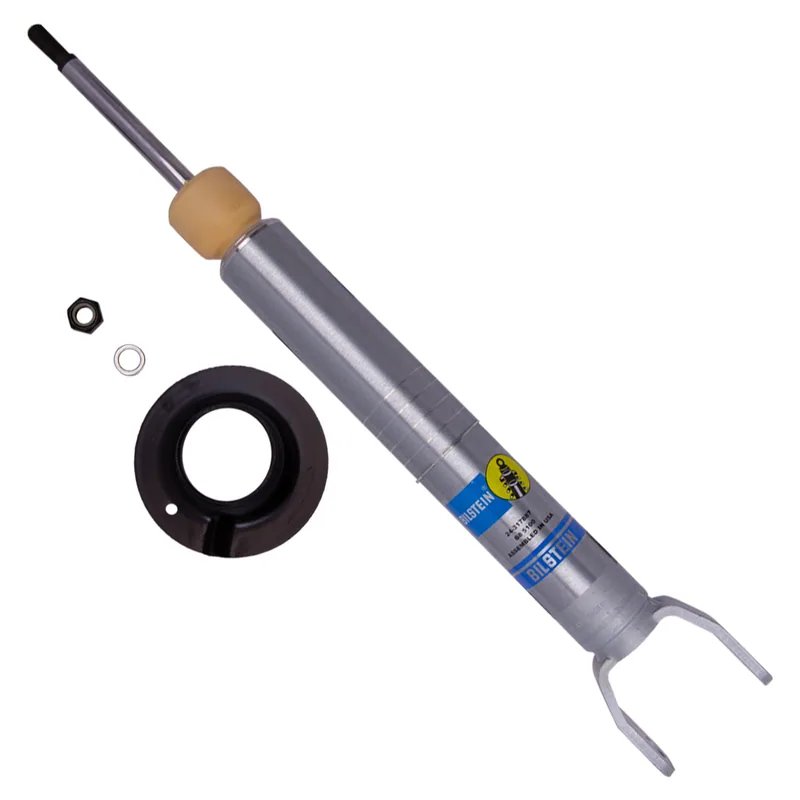

Bilstein 24-317887 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 24-187367
Country of origin: United States
Box: Ships in Bilstein's own box (about 61 × 11 × 11 cm, 3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

104 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Dodge Ram 1500	Years	2009–2010	Submodels	TRX4	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.8" Front Lift
Dodge Ram 1500	Years	2009–2010	Submodels	Laramie, SLT, ST, Sport	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2.8" Front Lift
Ram 1500	Years	2016–2018	Submodels	Big Horn, Express, Laramie, Laramie Longhorn, Lone Star, SLT, Sport, Tradesman	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.8" Front Lift Without Air Suspension Check which applies
Ram 1500	Years	2016	Submodels	Outdoorsman	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.8" Front Lift Without Air Suspension Check which applies
Ram 1500	Years	2015	Submodels	Big Horn, Express, Laramie, Laramie Longhorn, Lone Star, Outdoorsman, SLT, Sport, Tradesman	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.8" Front Lift Without Air Suspension Check which applies
Ram 1500	Years	2014	Submodels	Big Horn, Express, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, Outdoorsman, SLT, Sport, Tradesman	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.8" Front Lift Without Air Suspension Check which applies
Ram 1500	Years	2013	Submodels	Big Horn, Express, Laramie, Laramie Longhorn, Outdoorsman, SLT, Sport, Tradesman	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.8" Front Lift Without Air Suspension Check which applies
Ram 1500	Years	2012	Submodels	Big Horn, Express, Laramie, Laramie Longhorn, Outdoorsman, SLT, ST, Sport, Tradesman	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2.8" Front Lift
Ram 1500	Years	2011	Submodels	Big Horn, Laramie, Laramie Longhorn, Outdoorsman, SLT, ST, Sport, Tradesman	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2.8" Front Lift
Ram 1500 Classic	Years	2024	Submodels	Tradesman, Warlock	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2.8" Front Lift
Ram 1500 Classic	Years	2023	Submodels	Express, SLT, Tradesman, Warlock	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2.8" Front Lift
Ram 1500 Classic	Years	2020–2022	Submodels	Express, SLT, Tradesman, Warlock	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.8" Front Lift Without Air Suspension Check which applies
Ram 1500 Classic	Years	2019	Submodels	Big Horn, Express, Laramie, Lone Star, SLT, Tradesman, Warlock	Position	Front	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2.8" Front Lift Without Air Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 21.46
Collapsed Length (in): 15.12
Extended Length (mm): 545.2
Collapsed Length (mm): 384.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Clevis
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 6.34
Replacement Mounting Kit: B-KT01-0000021

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
