BetterB8 5100

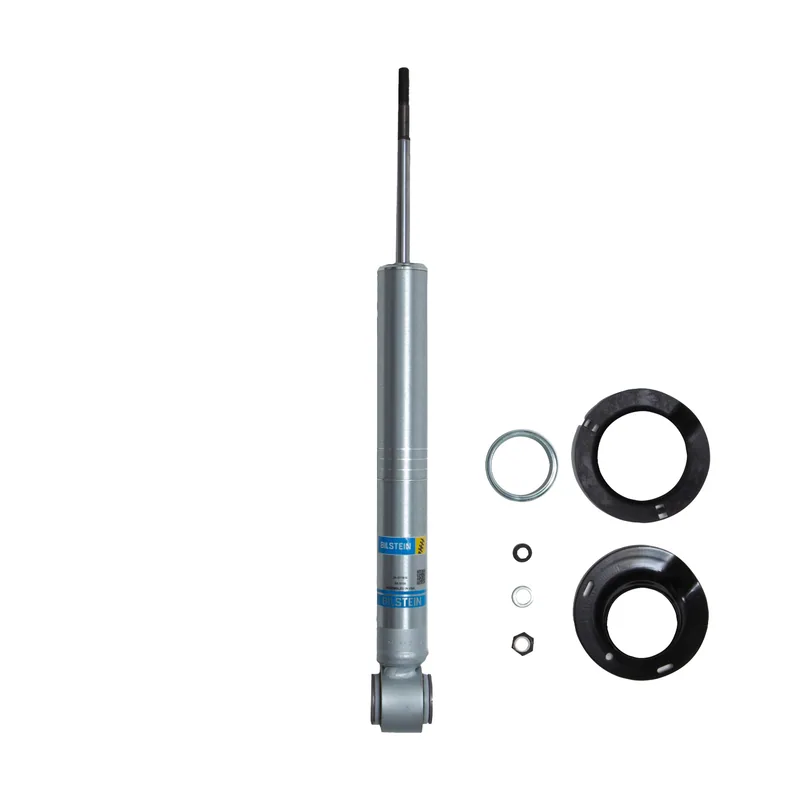

Bilstein 24-317856 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-239394
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 62 × 11 × 11 cm, 3.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
37 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford F-150 | 2013 | King Ranch, Lariat, Limited, Platinum, STX, XL, XLT | Front | 4WD |
|
| Ford F-150 | 2009–2013 | FX4 | Front | All |
|
| Ford F-150 | 2012 | King Ranch, Lariat, Platinum, STX, XL, XLT | Front | 4WD |
|
| Ford F-150 | 2011 | King Ranch, Lariat, Lariat Limited, Platinum, STX, XL, XLT | Front | 4WD |
|
| Ford F-150 | 2009–2010 | King Ranch, Lariat, Platinum, STX, XL, XLT | Front | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.86
- Collapsed Length (in)
- 16.93
- Extended Length (mm)
- 555.2
- Collapsed Length (mm)
- 430.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 20.3mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.93
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
