BetterB8 5100

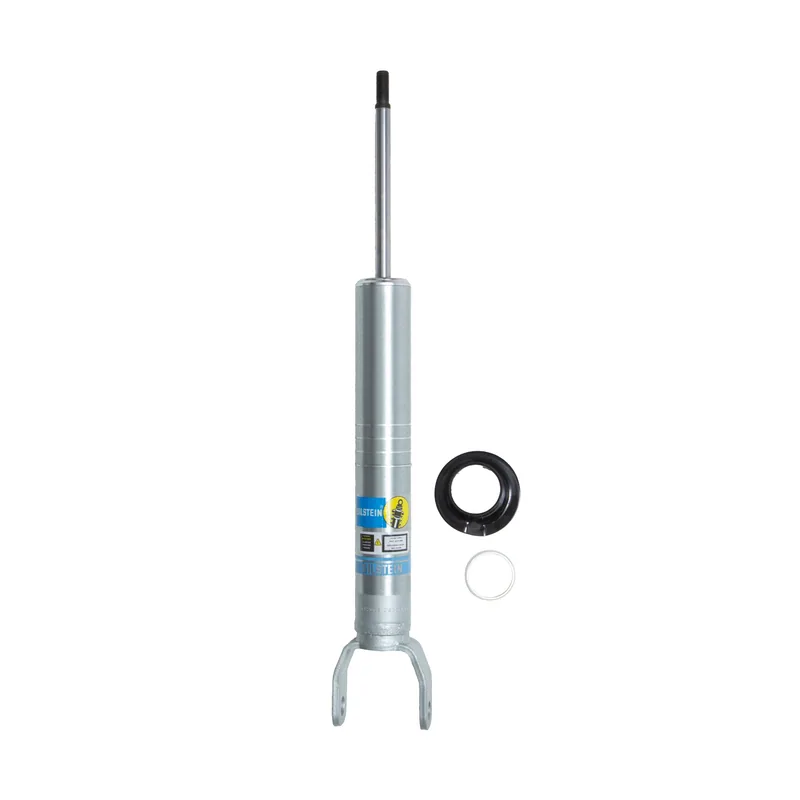

Bilstein 24-317795 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 24-186988
Country of origin: United States
Box: Ships in Bilstein's own box (about 61 × 11 × 11 cm, 3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

14 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Dodge Ram 1500	Years	2008	Submodels	ST	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies
Dodge Ram 1500	Years	2008	Submodels	Laramie, SLT, SXT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies
Dodge Ram 1500	Years	2008	Submodels	SLT, SXT	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies
Dodge Ram 1500	Years	2007	Submodels	SLT	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies
Dodge Ram 1500	Years	2006–2007	Submodels	TRX4	Position	Front	Drive / body / engine	All	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies
Dodge Ram 1500	Years	2006–2007	Submodels	ST, Sport	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies
Dodge Ram 1500	Years	2006–2007	Submodels	Laramie, SLT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies
Dodge Ram 1500	Years	2006	Submodels	Laramie, SLT	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift Excludes Mega Cab Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 21.29
Collapsed Length (in): 15.18
Extended Length (mm): 540.7
Collapsed Length (mm): 385.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Stem
Lower Mount Type: Clevis
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 6.11

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
