BetterB8 5100

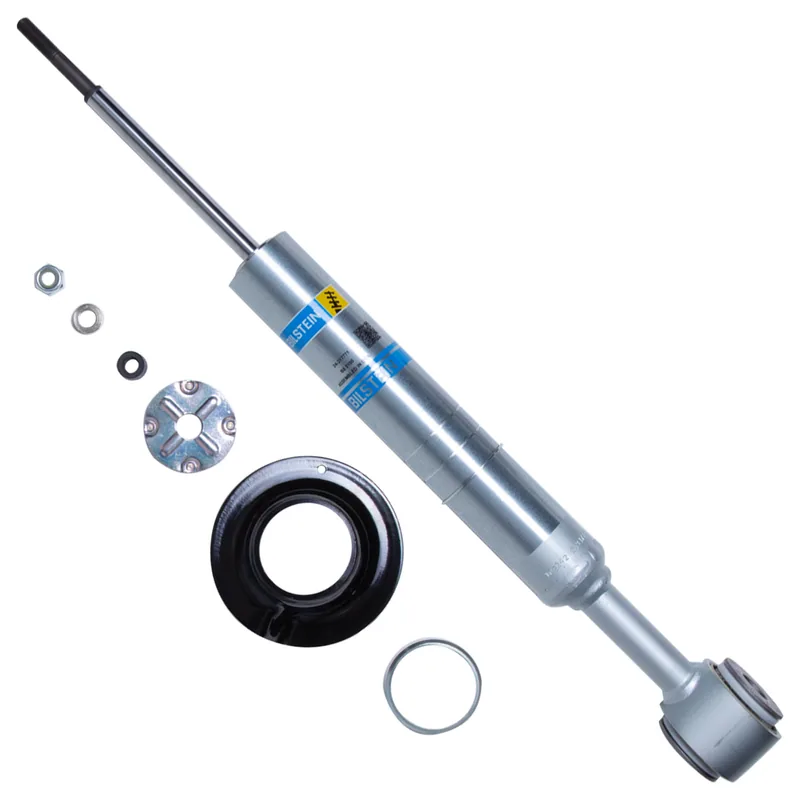

Bilstein 24-317771 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-239363
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 62 × 11 × 11 cm, 3.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
37 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford F-150 | 2008 | Harley-Davidson Edition, King Ranch, Lariat, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT | Front | 4WD |
|
| Ford F-150 | 2008 | Limited | Front | AWD |
|
| Ford F-150 | 2004–2008 | FX4 | Front | All |
|
| Ford F-150 | 2006–2007 | Harley-Davidson Edition, King Ranch, Lariat, STX, XL, XLT | Front | 4WD |
|
| Ford F-150 | 2005 | King Ranch, Lariat, STX, XL, XLT | Front | 4WD |
|
| Ford F-150 | 2004 | Lariat, STX, XL, XLT | Front | 4WD |
|
| Lincoln Mark LT | 2006–2008 | Base | Front | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.92
- Collapsed Length (in)
- 16.34
- Extended Length (mm)
- 556.7
- Collapsed Length (mm)
- 415.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 20.3mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 5.58
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
