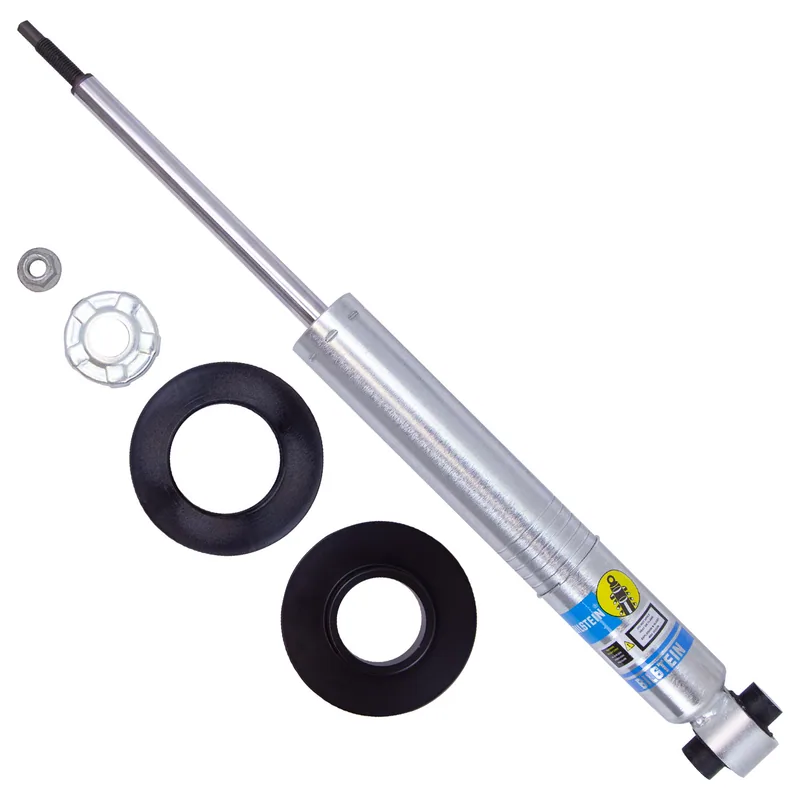

Bilstein 24-317474 B8 5100 Ride Height Adjustable Shock Absorber
BetterB8 5100

Bilstein 24-317474 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Replaces OE
Chevrolet 84844870, Chevrolet 84844871, Chevrolet 84844873, Chevrolet 84844874, Chevrolet 84844875, General Motors 84844870 and 9 more

General Motors 84844871, General Motors 84844873, General Motors 84844874, General Motors 84844875, GMC 84844870, GMC 84844871, GMC 84844873, GMC 84844874, GMC 84844875

Country of origin
Mexico
Box
Ships in Bilstein's own box (about 64 × 11 × 11 cm, 3.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

68 vehicles, newest years first

Chevrolet Suburban2021–2026LS, LT, RST, Z71RearAll
  • Provides 0-1.8" Rear Lift
  • Provides 0-1.8" Rear Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
Chevrolet Tahoe2024–2026LS, LT, RST, Z71RearAll
  • Provides 0-1.8" Rear Lift
  • Provides 0-1.8" Rear Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
Chevrolet Tahoe2021–2023LS, LT, RSTRearAll
  • Provides 0-1.8" Rear Lift
  • Provides 0-1.8" Rear Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
Chevrolet Tahoe2021–2023Z71RearAll
  • Spring type: Front: Coil , Rear: Coil
  • Provides 0-1.8" Rear Lift
  • Provides 0-1.8" Rear Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
GMC Yukon2025–2026ElevationRearAll
  • Provides 0-1.8" Rear Lift
GMC Yukon2021–2024SLE, SLTRearAll
  • Provides 0-1.8" Rear Lift
GMC Yukon XL2025–2026ElevationRearAll
  • Provides 0-1.8" Rear Lift
GMC Yukon XL2021–2024SLE, SLTRearAll
  • Provides 0-1.8" Rear Lift

Specifications

As Bilstein publishes them.

Extended Length (in)
22.50
Collapsed Length (in)
15.12
Extended Length (mm)
571.4
Collapsed Length (mm)
384.0
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
18mm
Upper Mount Type
Stem
Lower Mount Type
Eye 14.1mm
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
Yes
Stroke/travel Length (in)
7.38

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
