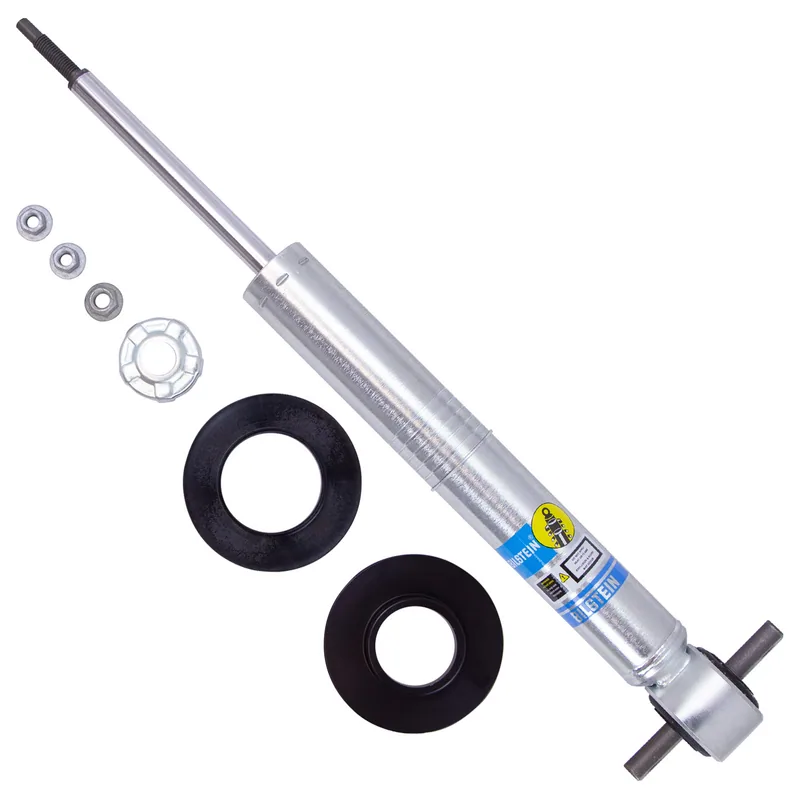

Bilstein 24-317467 B8 5100 Ride Height Adjustable Shock Absorber
BetterB8 5100

Bilstein 24-317467 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Replaces OE
Chevrolet 84844798, Chevrolet 84844799, Chevrolet 84844800, Chevrolet 84844801, Chevrolet 84844802, Chevrolet 84844807 and 15 more

Chevrolet 84844808, General Motors 84844798, General Motors 84844799, General Motors 84844800, General Motors 84844801, General Motors 84844802, General Motors 84844807, General Motors 84844808, GMC 84844798, GMC 84844799, GMC 84844800, GMC 84844801, GMC 84844802, GMC 84844807, GMC 84844808

Country of origin
Mexico
Box
Ships in Bilstein's own box (about 62 × 13 × 13 cm, 4.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

68 vehicles, newest years first

Chevrolet Suburban2021–2026LS, LT, RST, Z71FrontAll
  • Provides 0-2.3" Front Lift
  • Provides 0-2.3" Front Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
Chevrolet Tahoe2024–2026LS, LT, RST, Z71FrontAll
  • Provides 0-2.3" Front Lift
  • Provides 0-2.3" Front Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
Chevrolet Tahoe2021–2023LS, LT, RSTFrontAll
  • Provides 0-2.3" Front Lift
  • Provides 0-2.3" Front Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
Chevrolet Tahoe2021–2023Z71FrontAll
  • Spring type: Front: Coil , Rear: Coil
  • Provides 0-2.3" Front Lift
  • Provides 0-2.3" Front Lift
  • Without Magnetic Ride Control or Air Suspension
  • Check which applies
GMC Yukon2025–2026ElevationFrontAll
  • Provides 0-2.3" Front Lift
GMC Yukon2021–2024SLE, SLTFrontAll
  • Provides 0-2.3" Front Lift
GMC Yukon XL2025–2026ElevationFrontAll
  • Provides 0-2.3" Front Lift
GMC Yukon XL2021–2024SLE, SLTFrontAll
  • Provides 0-2.3" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in)
21.93
Collapsed Length (in)
16.34
Extended Length (mm)
557.0
Collapsed Length (mm)
415.0
Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
18mm
Upper Mount Type
Stem
Lower Mount Type
Crossbar
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Zinc Plated
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
Yes
Stroke/travel Length (in)
5.59

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
