BetterB8 5100

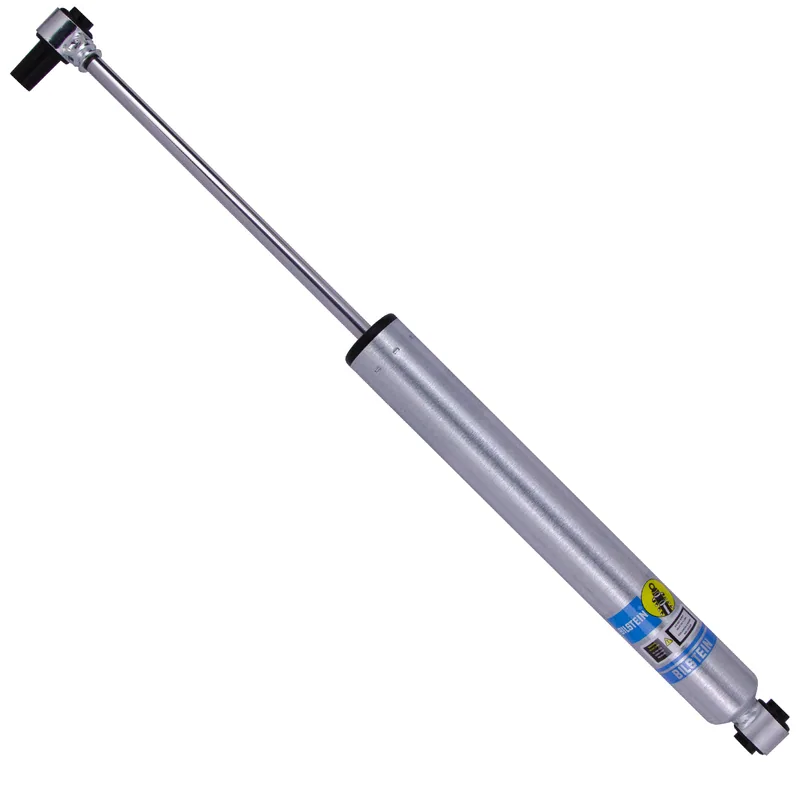

Bilstein 24-315067 B8 5100 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 80 × 11 × 11 cm, 2.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

55 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Jeep Gladiator	Years	2026	Submodels	Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2025	Submodels	High Tide, NightHawk, Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2024	Submodels	High Tide, Jeep Beach, NightHawk, Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2023	Submodels	Freedom, High Altitude, Overland, Rubicon, Sport, Sport S, Texas Trail, Willys, Willys Sport	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2022	Submodels	Altitude, High Altitude, Overland, Rubicon, Sport, Sport S, Texas Trail, Willys, Willys Sport	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2021	Submodels	80th Anniversary, High Altitude, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2020	Submodels	Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S	Position	Front	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 28.76
Collapsed Length (in): 18.52
Extended Length (mm): 730.5
Collapsed Length (mm): 470.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Eye 12.8mm
Lower Mount Type: Eye 12.8mm
Body Design: Smooth Body (Non-coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: No
Stroke/travel Length (in): 10.24

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
