BetterB8 5100

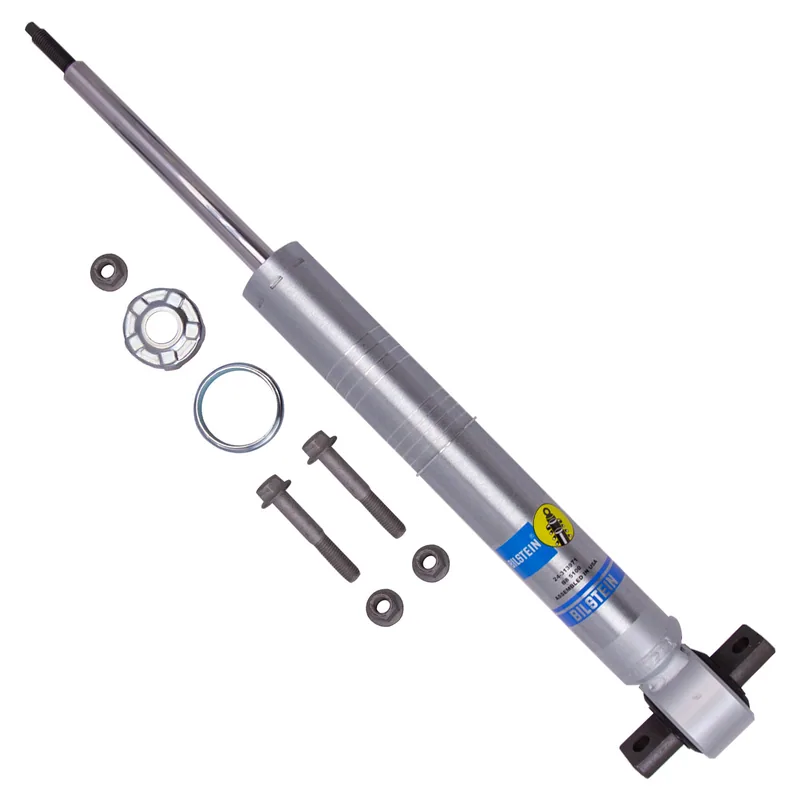

Bilstein 24-313971 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 64 × 13 × 13 cm, 4.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

39 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford Bronco	Years	2025–2026	Submodels	Badlands, Base, Big Bend, Heritage Edition, Outer Banks	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 1-2.9" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Without HOSS 3.0 Package Provides 0.7-2.5" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2024	Submodels	Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 0.7-2.5" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Provides 1-2.9" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2023	Submodels	Badlands, Base, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 0.7-2.5" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Provides 1-2.9" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2022	Submodels	Badlands, Base, Big Bend, Black Diamond, Everglades, Outer Banks, Wildtrak	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 0.7-2.5" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Provides 1-2.9" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2021	Submodels	Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 0.7-2.5" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Provides 1-2.9" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.80
Collapsed Length (in): 16.62
Extended Length (mm): 579.2
Collapsed Length (mm): 422.2
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Crossbar
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: No - Reuse OEM
Stroke/travel Length (in): 6.18
Replacement Mounting Kit: B4-KT1-Z455A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
