BetterB8 5100

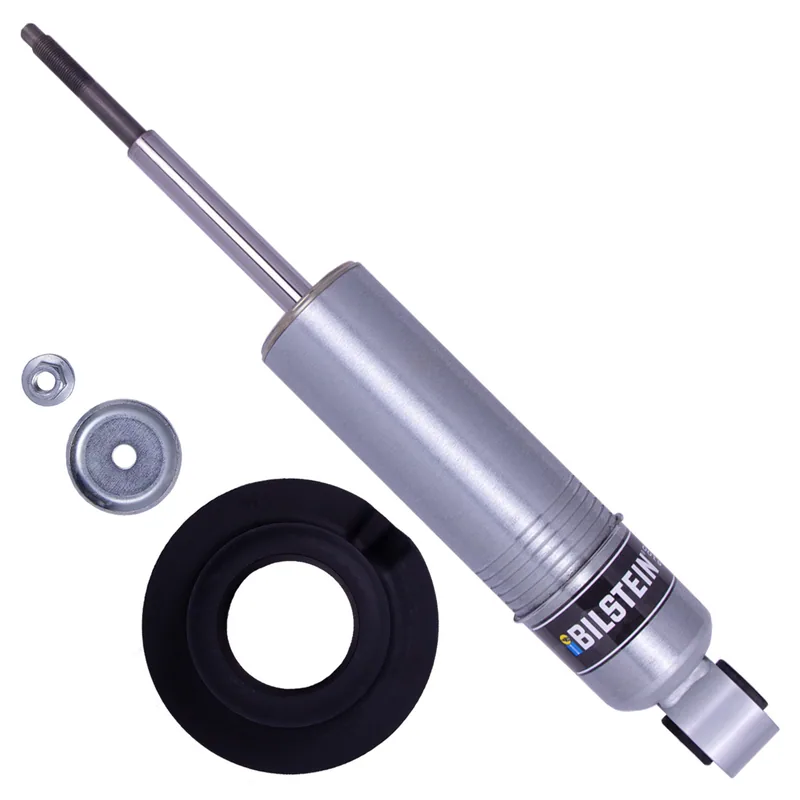

Bilstein 24-311168 B8 6100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-268233
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 45 × 14 × 14 cm, 5.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
36 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Nissan TITAN | 2024 | PRO-4X, Platinum Reserve, SV | Front | All |
|
| Nissan TITAN | 2022–2023 | PRO-4X, Platinum Reserve, S, SV | Front | All |
|
| Nissan TITAN | 2017–2021 | PRO-4X, Platinum Reserve, S, SL, SV | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 15.31
- Collapsed Length (in)
- 10.94
- Extended Length (mm)
- 389.0
- Collapsed Length (mm)
- 278.0
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.37
- Replacement Mounting Kit
- B4-KT1-Z373A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
