BetterB8 5100

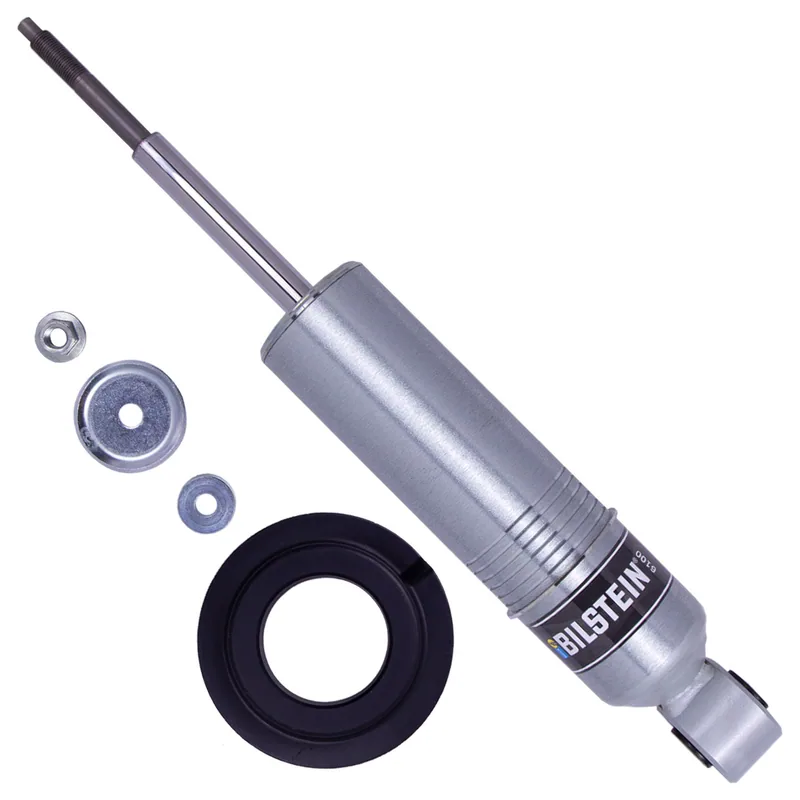

Bilstein 24-311137 B8 6100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 24-270182
Country of origin: United States
Box: Ships in Bilstein's own box (about 45 × 14 × 14 cm, 4.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

44 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Nissan TITAN	Years	2013–2015	Submodels	PRO-4X	Position	Front	Drive / body / engine	All	Notes	Provides 0-1.2" Front Lift Provides 0-2" Front Lift Check which applies
Nissan TITAN	Years	2013–2015	Submodels	S, SL, SV	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-1.2" Front Lift Provides 0-2" Front Lift Check which applies
Nissan TITAN	Years	2013–2015	Submodels	S, SL, SV	Position	Front	Drive / body / engine	RWD	Notes	Provides 0-1.2" Front Lift Provides 0-2" Front Lift Check which applies
Nissan TITAN	Years	2012	Submodels	PRO-4X	Position	Front	Drive / body / engine	All	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift - For OE Spring PN 54010-7S300 Provides 0-1.2" Front Lift - For OE Spring PN 54010-ZR400A Check which applies
Nissan TITAN	Years	2012	Submodels	S, SL, SV	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift - For OE Spring PN 54010-7S300 Provides 0-1.2" Front Lift - For OE Spring PN 54010-ZR400A Check which applies
Nissan TITAN	Years	2012	Submodels	S, SL, SV	Position	Front	Drive / body / engine	RWD	Notes	Provides 0-2" Front Lift Provides 0-2" Front Lift - For OE Spring PN 54010-7S300 Provides 0-1.2" Front Lift - For OE Spring PN 54010-ZR400A Check which applies
Nissan TITAN	Years	2011	Submodels	PRO-4X, S, SL, SV	Position	Front	Drive / body / engine	All	Notes	Provides 0-2" Front Lift
Nissan TITAN	Years	2008–2010	Submodels	LE, PRO-4X, SE, XE	Position	Front	Drive / body / engine	All	Notes	Provides 0-2" Front Lift
Nissan TITAN	Years	2004–2007	Submodels	LE, SE, XE	Position	Front	Drive / body / engine	All	Notes	Provides 0-2" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 15.14
Collapsed Length (in): 11.07
Extended Length (mm): 384.5
Collapsed Length (mm): 281.2
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.2mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 4.07

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
