BetterB6 4600

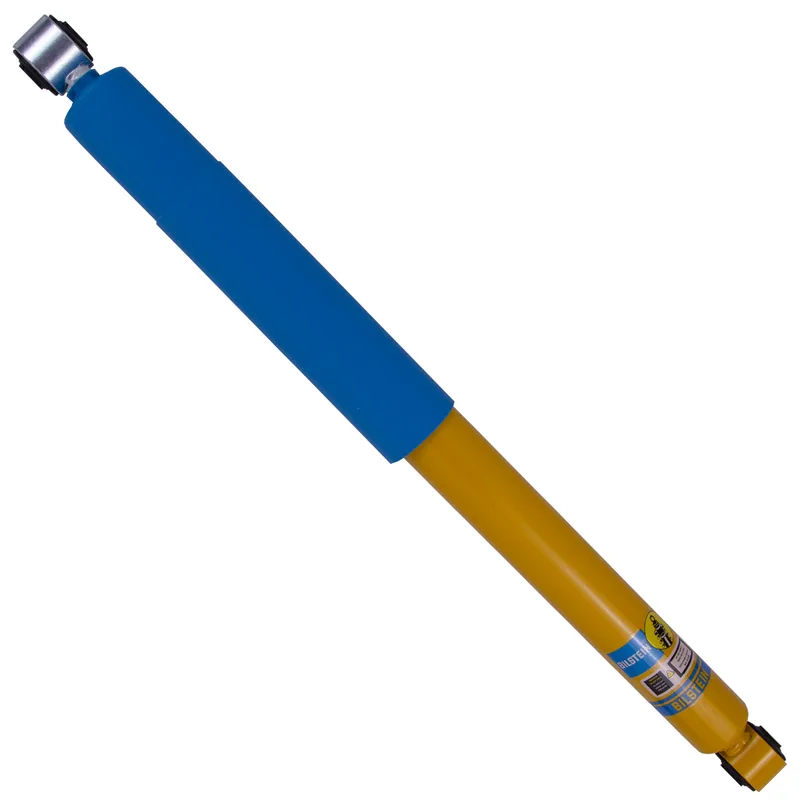

Bilstein 24-302296 B6 4600 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Dodge 68379502AC
Country of origin: Mexico
Box: Ships in Bilstein's own box (about 77 × 11 × 11 cm, 2.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

50 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 3500	Years	2025–2026	Submodels	Big Horn, Limited Longhorn	Position	Rear	Drive / body / engine	4WD	Notes	Without Rear Air Leveling Suspension
Ram 3500	Years	2024–2026	Submodels	Laramie, Limited, Tradesman	Position	Rear	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Without Rear Air Leveling Suspension
Ram 3500	Years	2024–2026	Submodels	Laramie, Limited	Position	Rear	Drive / body / engine	4WD · Mega Cab / Extended Crew Cab Pickup	Notes	Without Rear Air Leveling Suspension
Ram 3500	Years	2024–2026	Submodels	Tradesman	Position	Rear	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Without Rear Air Leveling Suspension
Ram 3500	Years	2024	Submodels	Big Horn, Limited Longhorn, SLT	Position	Rear	Drive / body / engine	4WD	Notes	Without Rear Air Leveling Suspension
Ram 3500	Years	2023	Submodels	Big Horn, Limited Longhorn, SLT	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension
Ram 3500	Years	2019–2023	Submodels	Laramie, Limited, Tradesman	Position	Rear	Drive / body / engine	4WD · Crew Cab Pickup	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension
Ram 3500	Years	2019–2023	Submodels	Laramie, Limited	Position	Rear	Drive / body / engine	4WD · Mega Cab / Extended Crew Cab Pickup	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension
Ram 3500	Years	2019–2023	Submodels	Tradesman	Position	Rear	Drive / body / engine	4WD · Standard Cab Pickup	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension
Ram 3500	Years	2022	Submodels	Big Horn, Limited Longhorn, Lone Star, SLT	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension
Ram 3500	Years	2021	Submodels	Big Horn, Limited Longhorn, SLT	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension
Ram 3500	Years	2021	Submodels	Lone Star	Position	Rear	Drive / body / engine	4WD · L6 6.7L	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension
Ram 3500	Years	2019–2020	Submodels	Big Horn, Laramie Longhorn, Lone Star, SLT	Position	Rear	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Leaf Without Rear Air Leveling Suspension

Specifications

As Bilstein publishes them.

Extended Length (in): 27.71
Collapsed Length (in): 17.40
Extended Length (mm): 704.0
Collapsed Length (mm): 442.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Eye 14.4mm
Lower Mount Type: Eye 14.4mm
Body Design: Smooth Body (Non-coilover)
Internal Design: Monotube
Finish: Yellow Paint
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Blue Straight
Spring Seat Included: No
Stroke/travel Length (in): 10.31

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
