BetterB6 4600

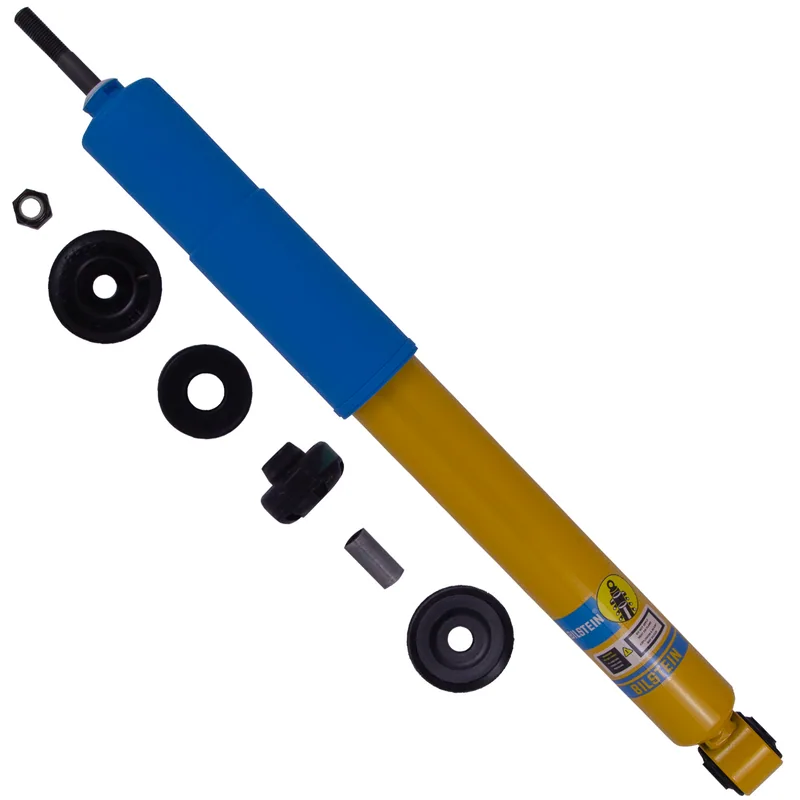

Bilstein 24-302289 B6 4600 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
- Dodge 68428082AB, Dodge 68449356AB, Dodge 68449357AB, Dodge 68473699AC
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 61 × 11 × 11 cm, 2.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
50 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ram 3500 | 2025–2026 | Big Horn, Limited Longhorn | Front | 4WD | — |
| Ram 3500 | 2019–2026 | Laramie, Limited, Tradesman | Front | 4WD · Crew Cab Pickup | — |
| Ram 3500 | 2019–2026 | Laramie, Limited | Front | 4WD · Mega Cab / Extended Crew Cab Pickup | — |
| Ram 3500 | 2019–2026 | Tradesman | Front | 4WD · Standard Cab Pickup | — |
| Ram 3500 | 2023–2024 | Big Horn, Limited Longhorn, SLT | Front | 4WD | — |
| Ram 3500 | 2022 | Big Horn, Limited Longhorn, Lone Star, SLT | Front | 4WD | — |
| Ram 3500 | 2021 | Big Horn, Limited Longhorn, SLT | Front | 4WD | — |
| Ram 3500 | 2021 | Lone Star | Front | 4WD · L6 6.7L | — |
| Ram 3500 | 2019–2020 | Big Horn, Laramie Longhorn, Lone Star, SLT | Front | 4WD | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.46
- Collapsed Length (in)
- 14.65
- Extended Length (mm)
- 545.0
- Collapsed Length (mm)
- 372.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 14.4mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Blue Straight
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 6.81
- Replacement Mounting Kit
- B4-KT1-Z223A01
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
