BetterB8 5100

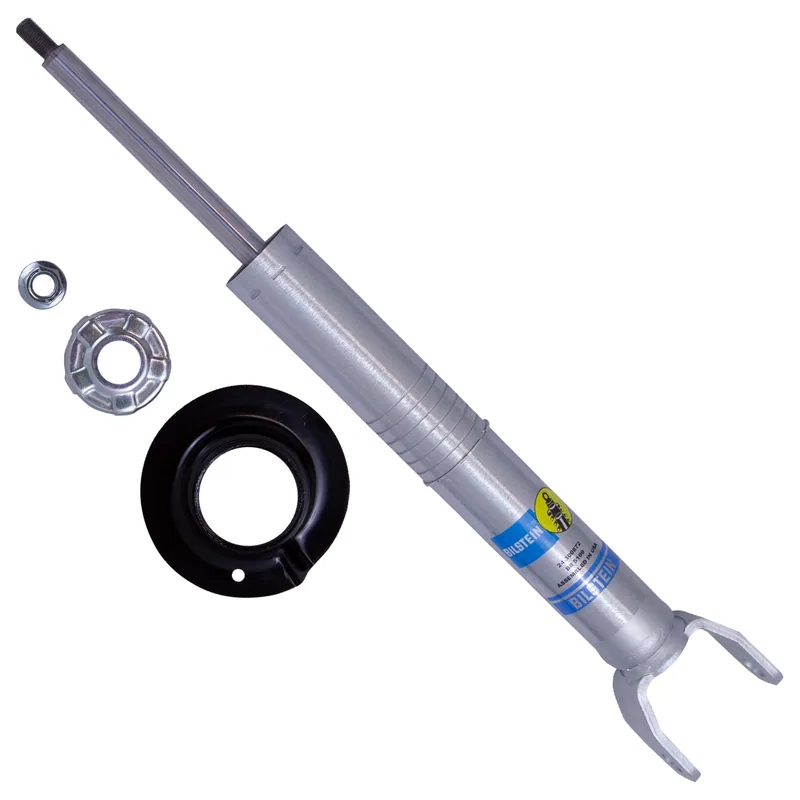

Bilstein 24-300872 B8 5100 Ride Height Adjustable Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 24-232203
Country of origin: United States
Box: Ships in Bilstein's own box (about 63 × 11 × 11 cm, 3.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

58 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 1500	Years	2026	Submodels	Big Horn, Express, Laramie, Lone Star, Rebel, Tradesman, Warlock	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Suspension Check which applies
Ram 1500	Years	2025	Submodels	Big Horn, Laramie, Lone Star, Rebel, Tradesman, Tradesman HFE, Warlock	Position	Front	Drive / body / engine	All	Notes	Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Suspension Check which applies
Ram 1500	Years	2024	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	All	Notes	Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Suspension Check which applies
Ram 1500	Years	2023	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Suspension Check which applies
Ram 1500	Years	2023	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Suspension Check which applies
Ram 1500	Years	2023	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Suspension Check which applies
Ram 1500	Years	2022	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2022	Submodels	Big Horn, HFE, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2022	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2021	Submodels	Big Horn, HFE, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman	Position	Front	Drive / body / engine	V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman	Position	Front	Drive / body / engine	V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2020	Submodels	Big Horn, HFE, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.6" Front Lift Without Air Suspension Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-1.6" Front Lift with factory Off-Road Package Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2019	Submodels	Big Horn, HFE, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies
Ram 1500	Years	2019	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-2" Front Lift Without Air Suspension Provides 0-2.6" Front Lift without factory Off-Road Package 0-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.08
Collapsed Length (in): 16.00
Extended Length (mm): 560.9
Collapsed Length (mm): 406.5
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Clevis
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 6.08
Replacement Mounting Kit: B4-KT1-Z417A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
