BetterB8 5100

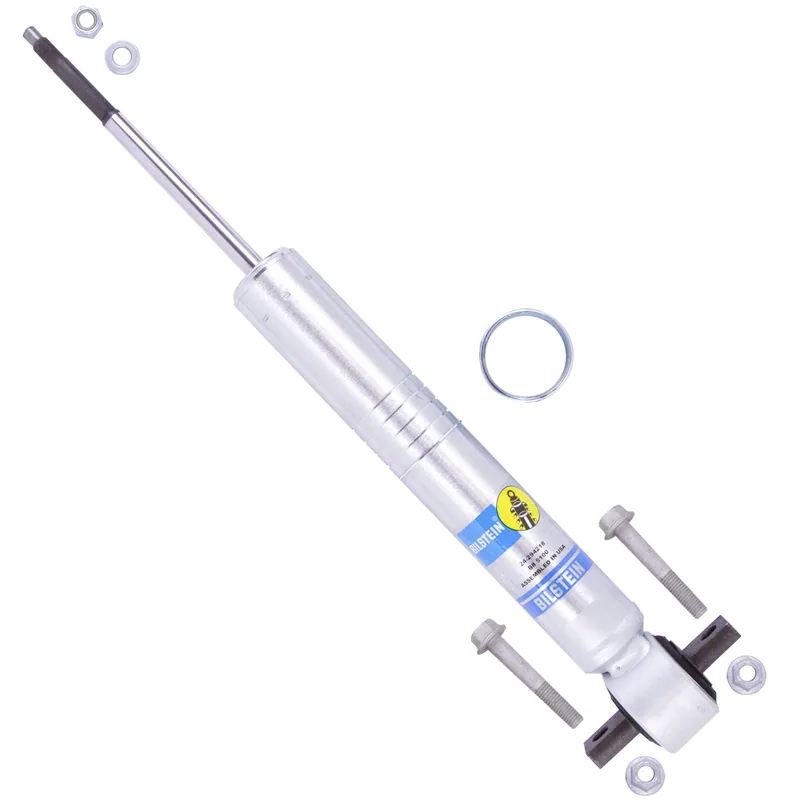

Bilstein 24-294218 B8 5100 Ride Height Adjustable Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 55 × 13 × 13 cm, 3.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
15 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Ranger | 2021–2023 | Lariat, XL, XLT | Front | All |
|
| Ford Ranger | 2019–2020 | Lariat, XL, XLT | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.26
- Collapsed Length (in)
- 14.59
- Extended Length (mm)
- 489.2
- Collapsed Length (mm)
- 370.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Crossbar
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No - Reuse OEM
- Stroke/travel Length (in)
- 4.67
- Replacement Mounting Kit
- B4-KT1-Z430A00
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
