BetterB8 5100

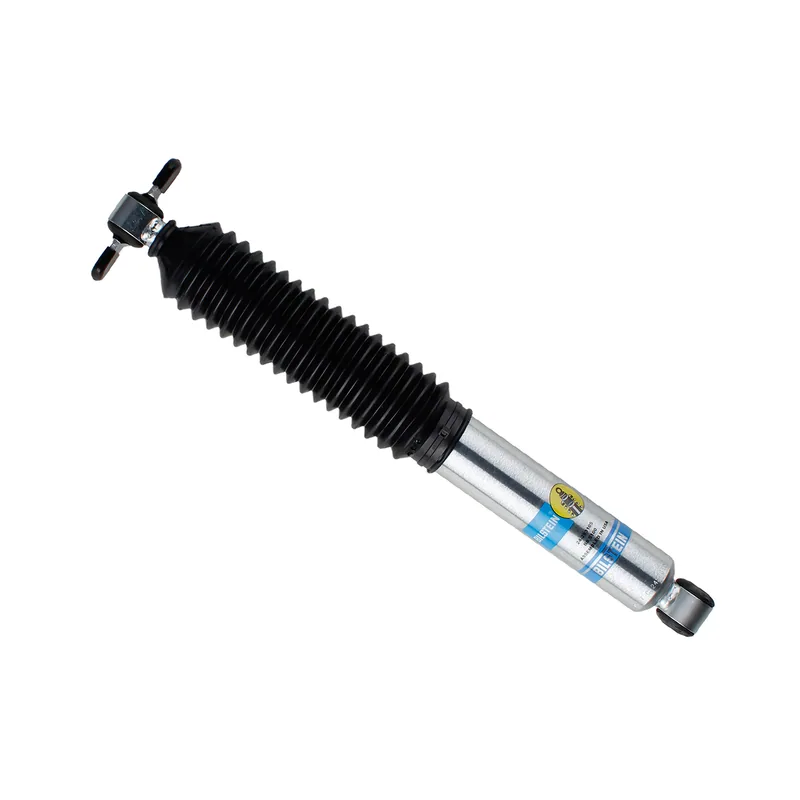

Bilstein 24-293105 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-186827
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 57 × 13 × 13 cm, 2.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
43 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep Wrangler | 2006 | 65th Anniversary Edition, Rubicon, SE, Sport, Unlimited, Unlimited Rubicon, X | Rear | All |
|
| Jeep Wrangler | 2005 | Rubicon, SE, Sport, Unlimited, Unlimited Rubicon, X | Rear | All |
|
| Jeep Wrangler | 2004 | Rubicon, SE, Sahara, Sport, Unlimited, X | Rear | All |
|
| Jeep Wrangler | 2003 | Rubicon, SE, Sahara, Sport, X | Rear | All |
|
| Jeep Wrangler | 2002 | SE, Sahara, Sport, X | Rear | All |
|
| Jeep Wrangler | 1997–2001 | SE, Sahara, Sport | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.96
- Collapsed Length (in)
- 12.81
- Extended Length (mm)
- 507.0
- Collapsed Length (mm)
- 325.3
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Bar Pin
- Lower Mount Type
- Eye 12.7mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 7.15
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
