BetterB8 5100

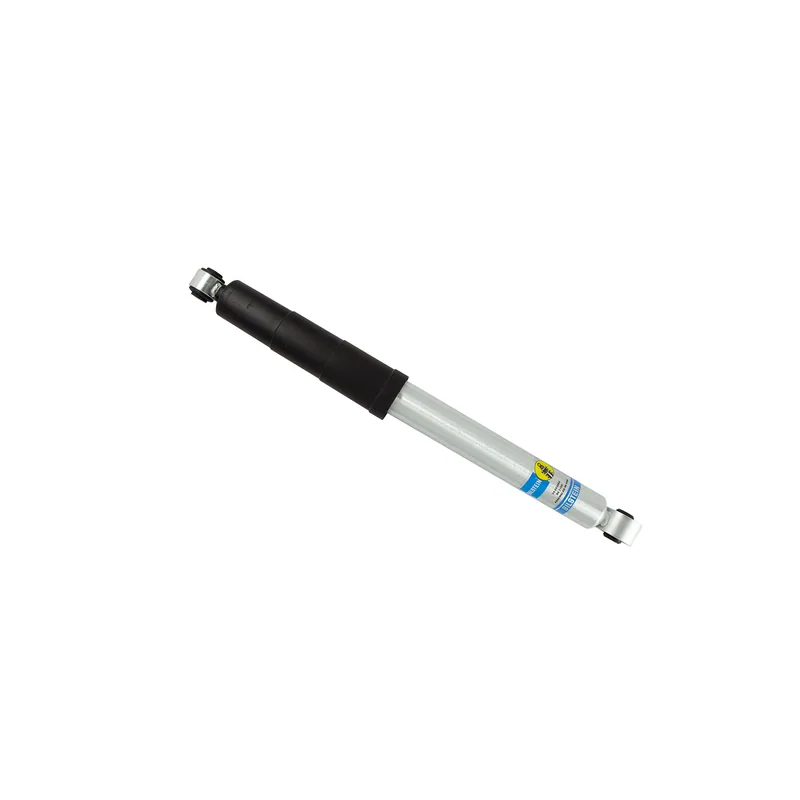

Bilstein 24-293082 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 24-186957
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 71 × 11 × 11 cm, 2.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
79 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Silverado 1500 | 2010–2013 | Hybrid, LS, LT, LTZ, WT, XFE | Rear | All |
|
| Chevrolet Silverado 1500 | 2009 | Hybrid, LS, LT, LTZ, WT | Rear | All |
|
| Chevrolet Silverado 1500 | 2008 | LS, LT, LTZ, WT | Rear | All |
|
| Chevrolet Silverado 1500 | 2007 | LT, LTZ, WT | Rear | All |
|
| GMC Sierra 1500 | 2010–2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | Rear | All |
|
| GMC Sierra 1500 | 2009 | Denali, Hybrid, SL, SLE, SLT, WT | Rear | All |
|
| GMC Sierra 1500 | 2008 | Denali, SL, SLE, SLT, WT | Rear | All |
|
| GMC Sierra 1500 | 2007 | Denali, SLE, SLT, WT | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 25.39
- Collapsed Length (in)
- 16.53
- Extended Length (mm)
- 645.0
- Collapsed Length (mm)
- 419.8
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Eye 14.1mm
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Straight
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 8.86
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
